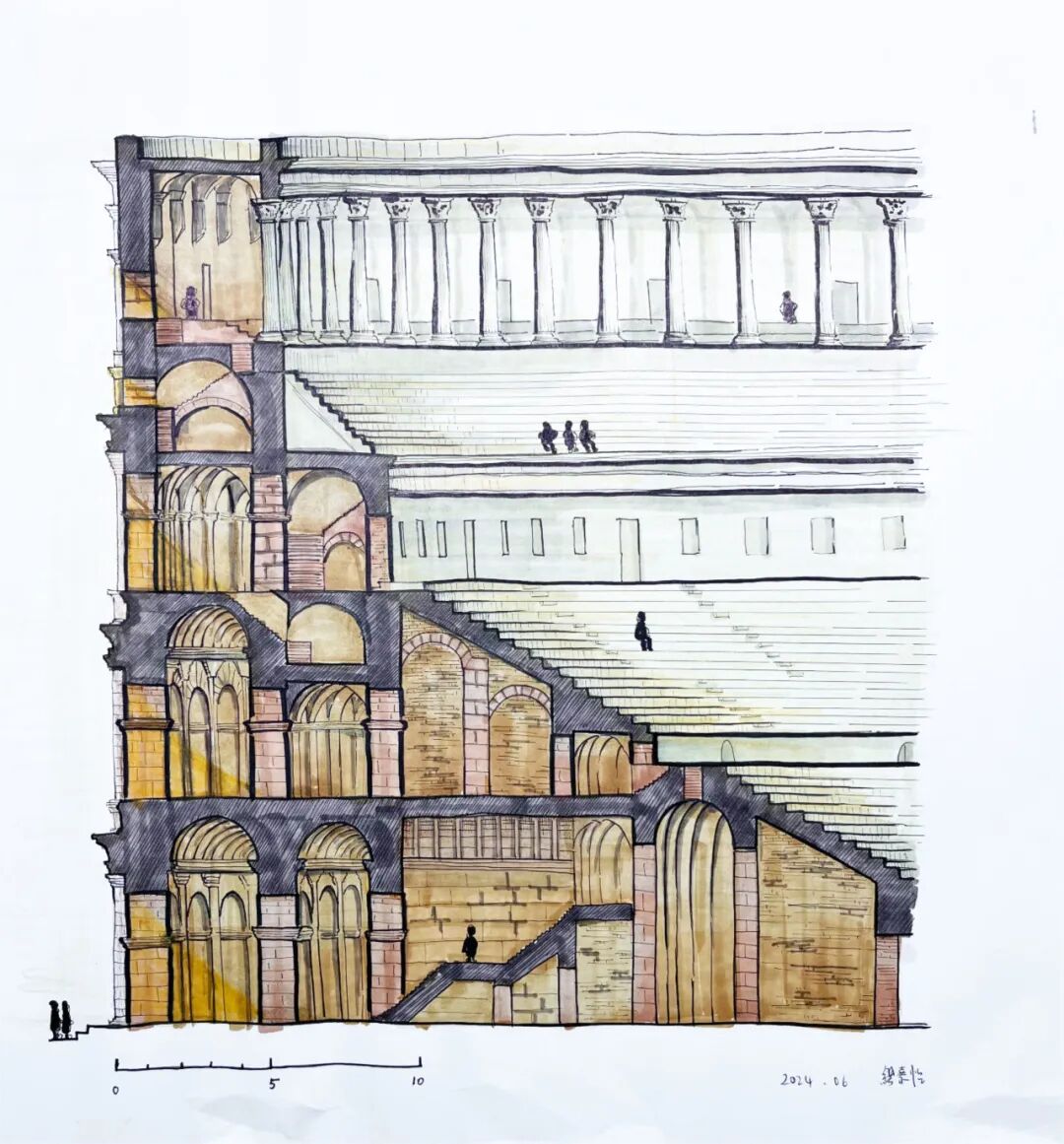

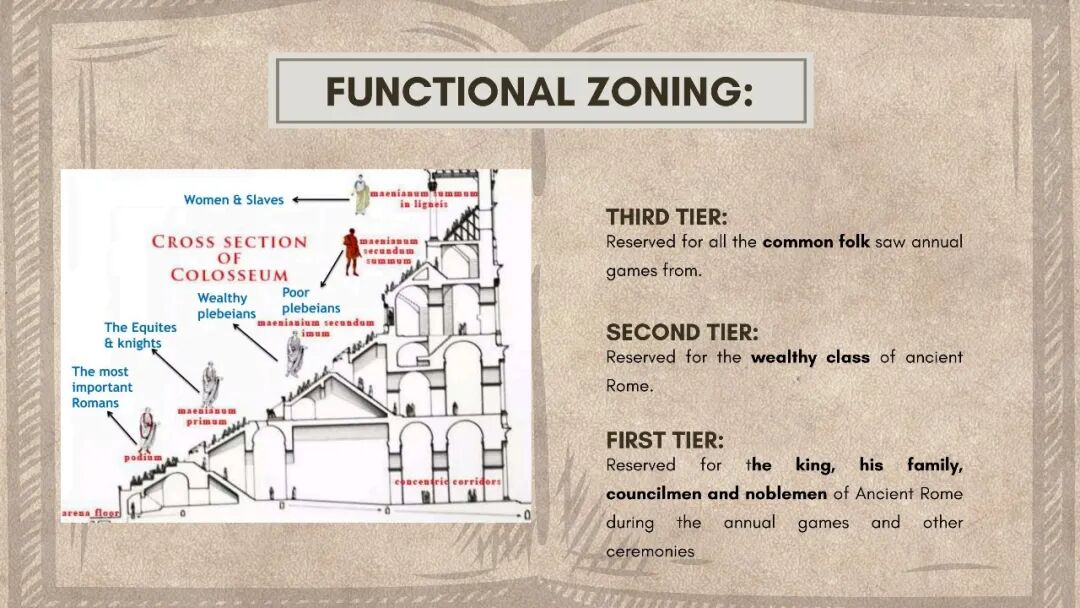

Profile perspective of the Colosseum, Rome, Italy, 70–80 CE

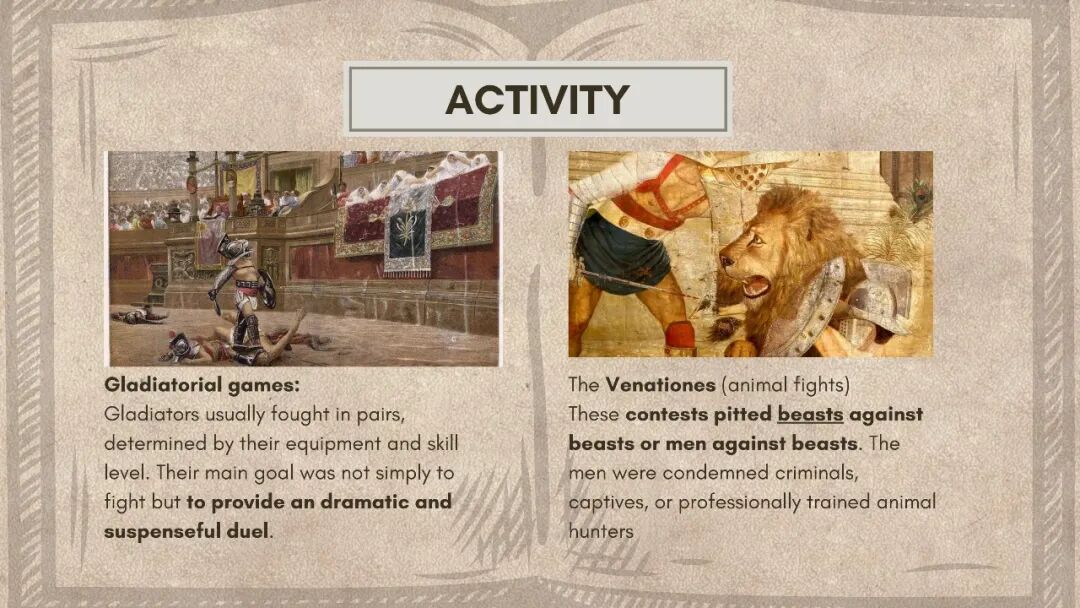

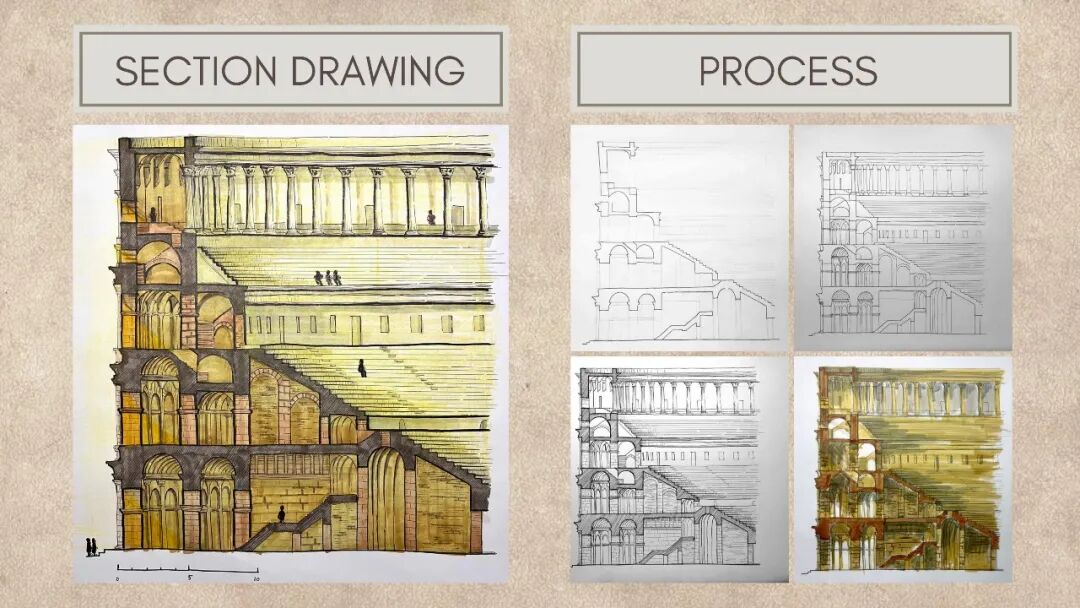

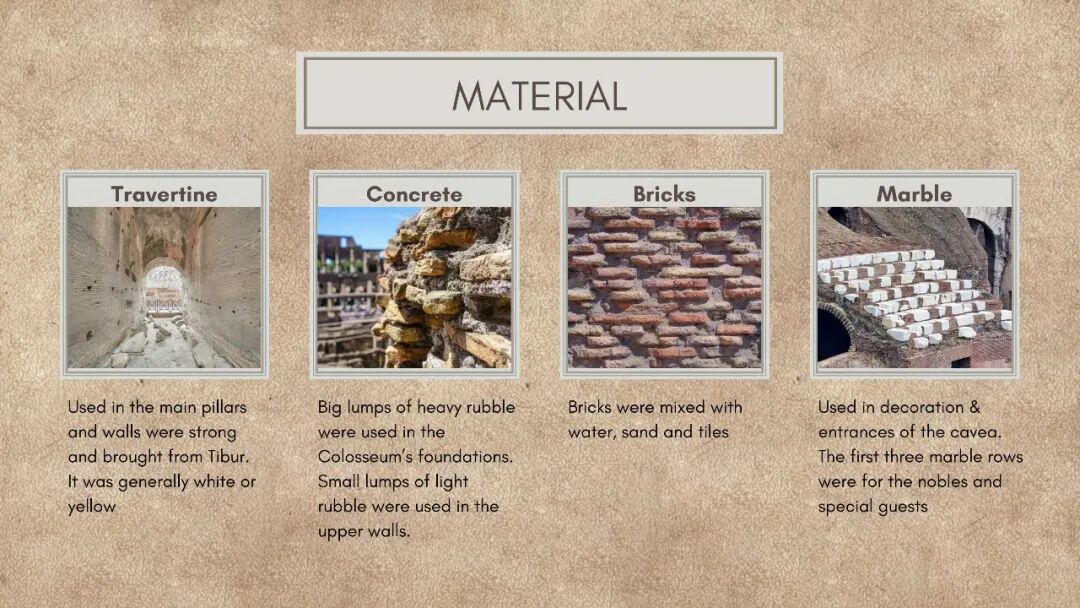

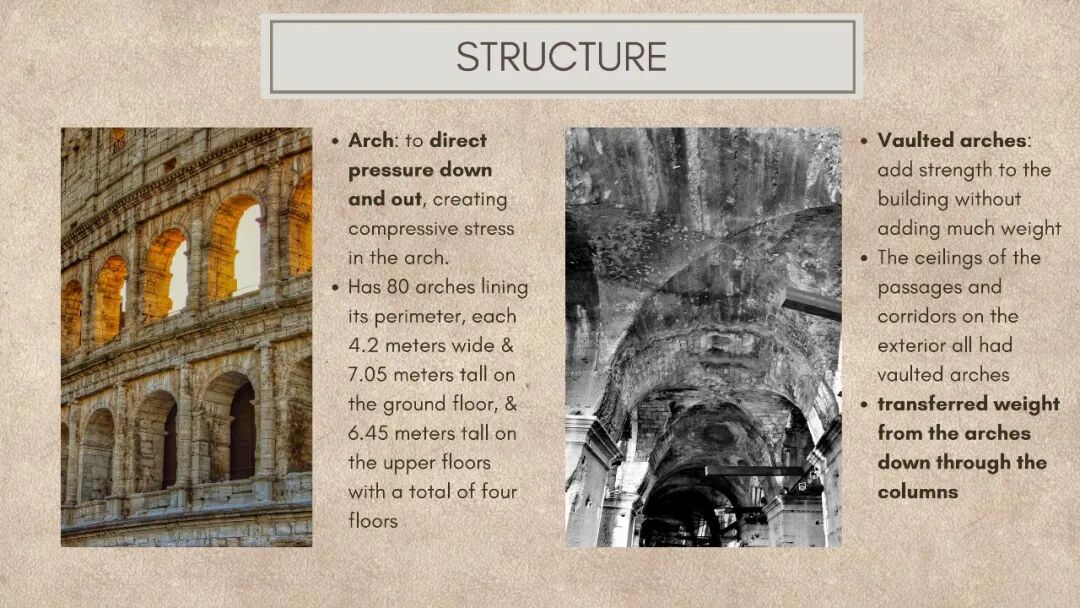

The Colosseum, an iconic ancient Roman architectural marvel, was built in the 1st century CE in the center of Rome, Italy. The massive amphitheater was used for grand public spectacles, including gladiatorial contests, animal hunts, executions, re-enactments of famous battles, and dramas based on Classical mythology. My work aims to illustrate the use of the materiality of the Colosseum, which encompasses marble, concrete, brickwork, and travertines. Brown-yellow colors of varying brightness were employed to depict the lighting conditions, displaying the depth of the space.

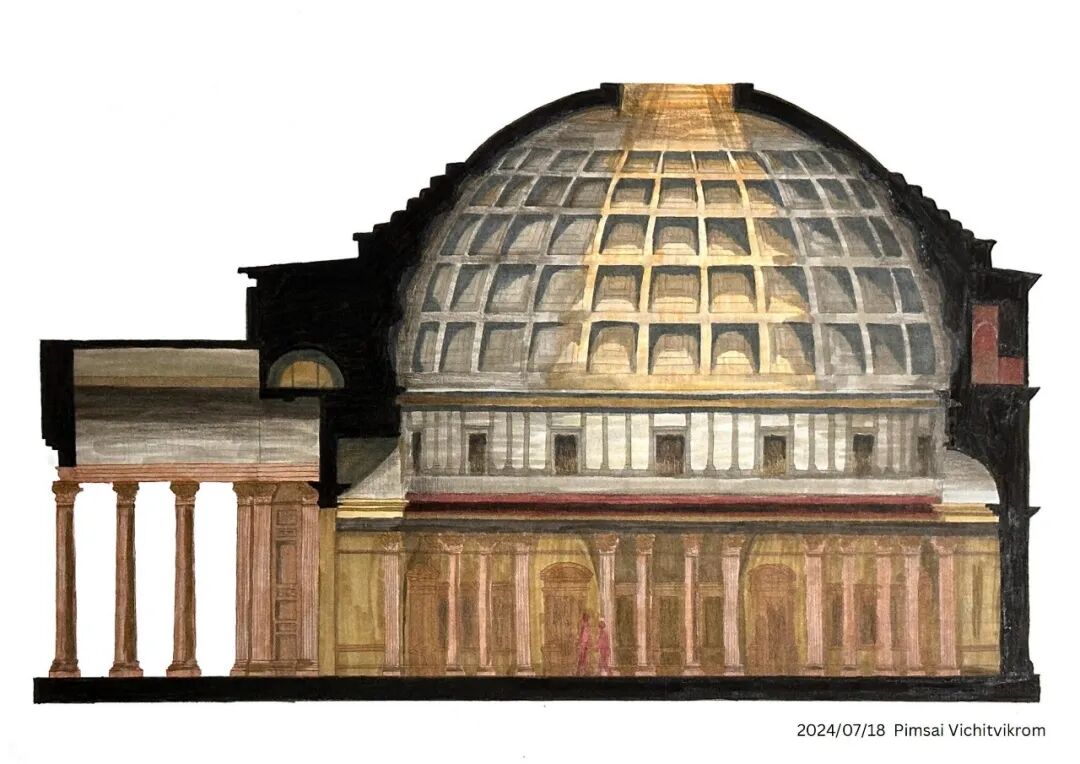

Longitudinal Section of the Pantheon at Rome, Italy, 113–125 CE

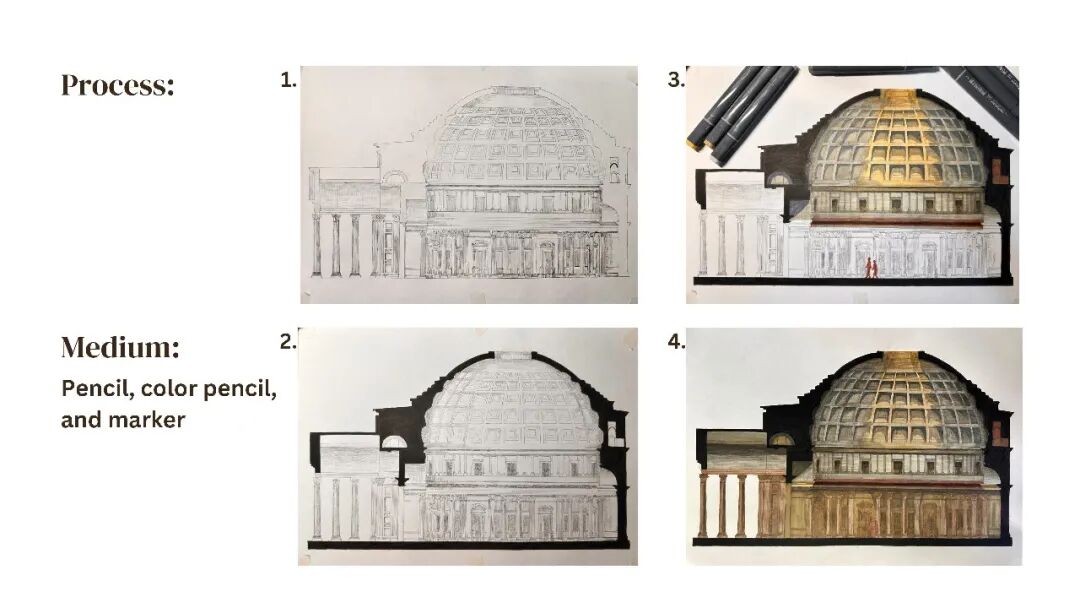

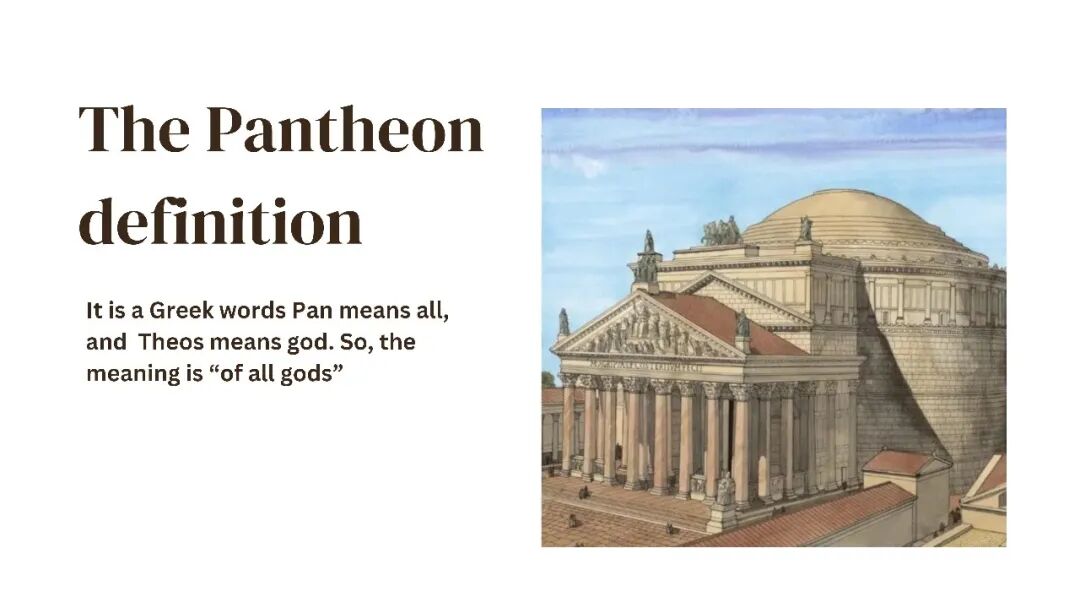

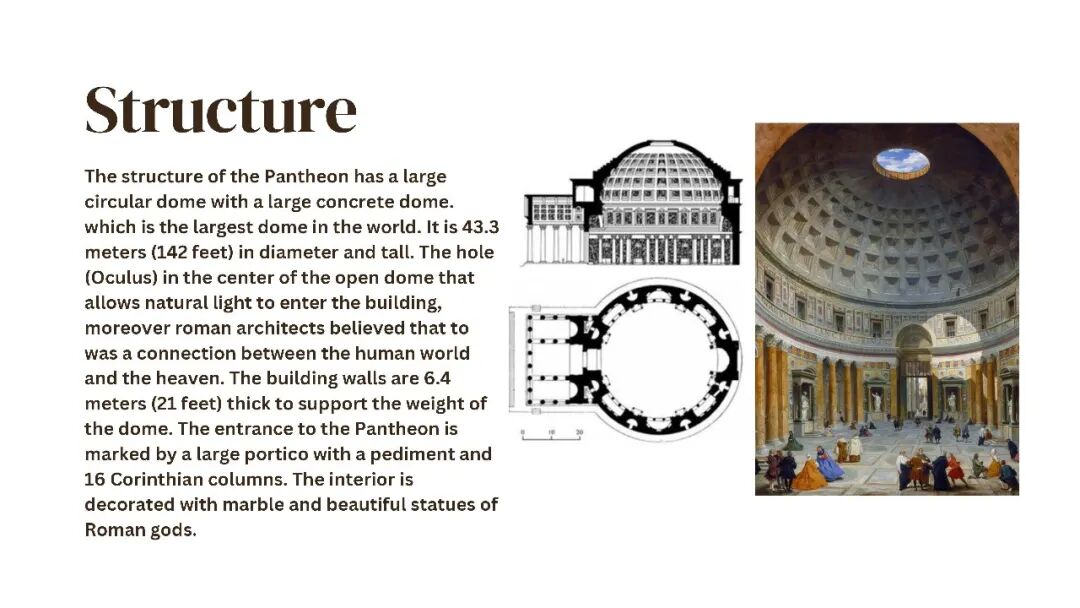

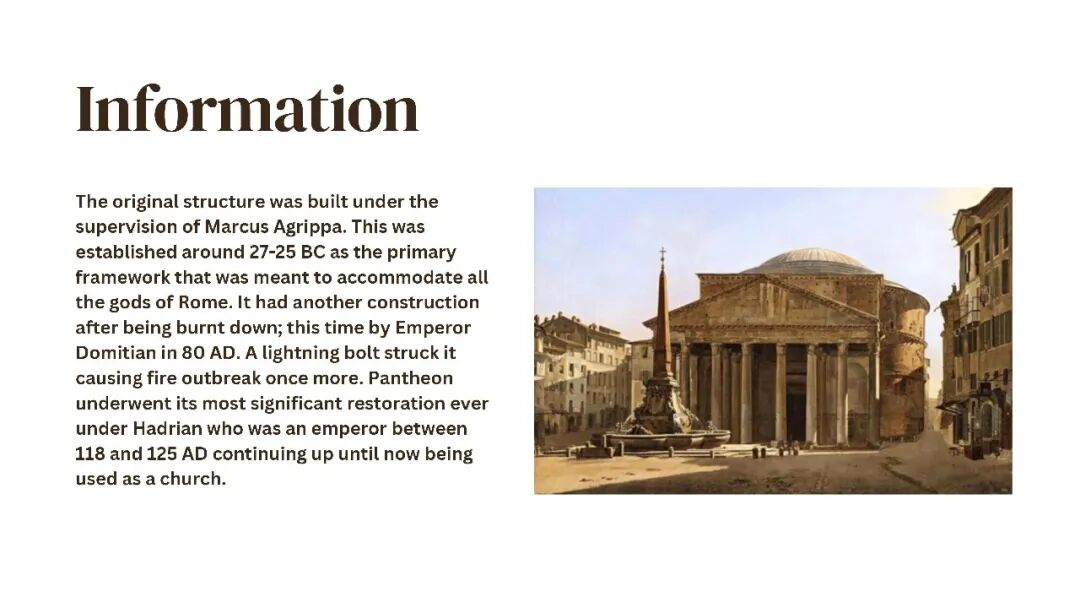

My work provides a comprehensive view of the cross-section of the Pantheon. In the center of the structure is a large dome that rises from darkness to light as it approaches the summit. A hole known as an “oculus” illuminates when the sun beams through. The walls that support this structure are very thick, which were represented in shades of brown and grey to emphasize that they were constructed from strong materials such as concrete. On the portico are columns of Corinthian order made from red-brown Egyptian granites. A triangular-shaped pediment is supported above them. Yellow was employed on the dome to show the passage of light through the oculus. Warm colors in the interior of the hallways indicate the presence of heat due to excessive sunlight during the day.

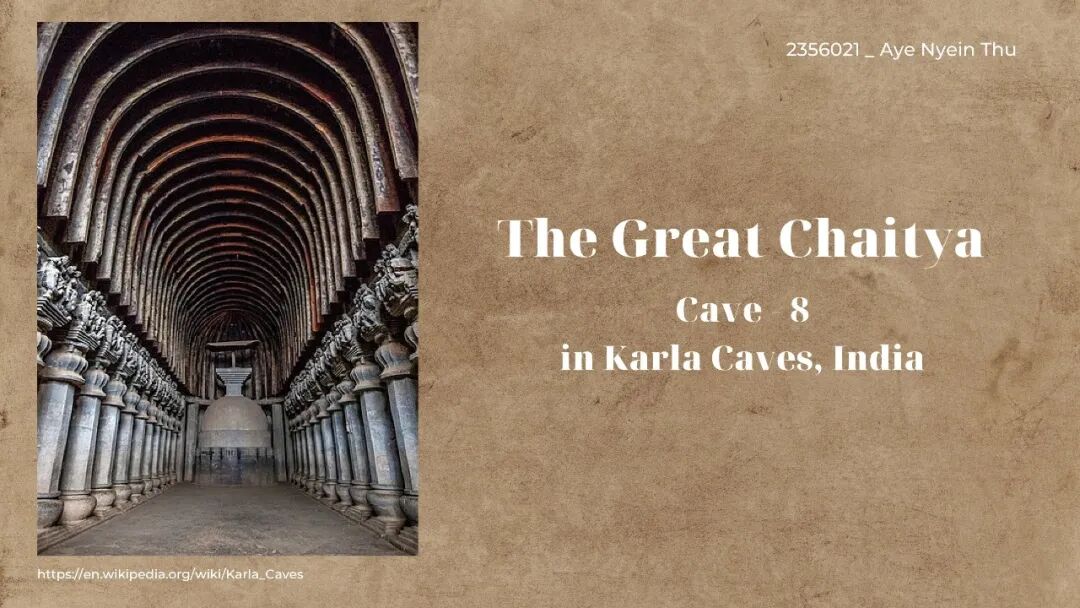

Longitudinal section of the Great Chaitya-hall at Karli, India, 120 CE

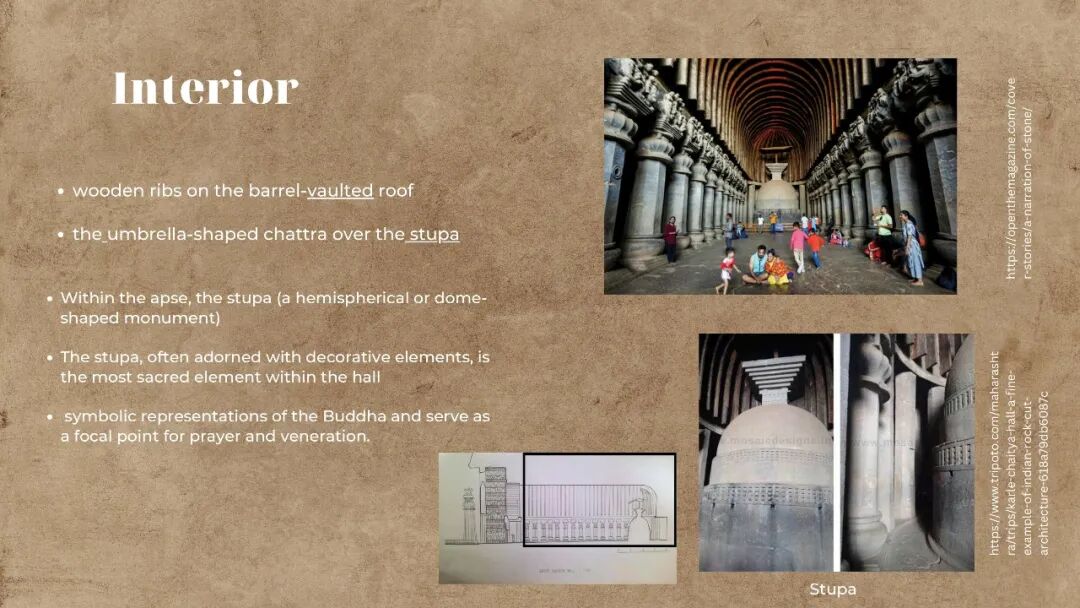

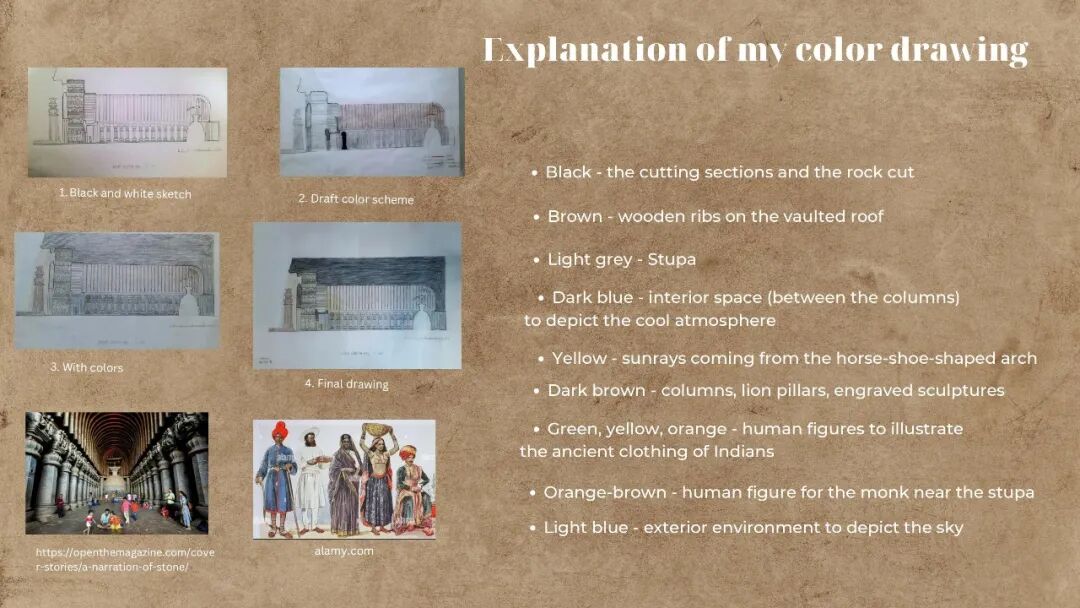

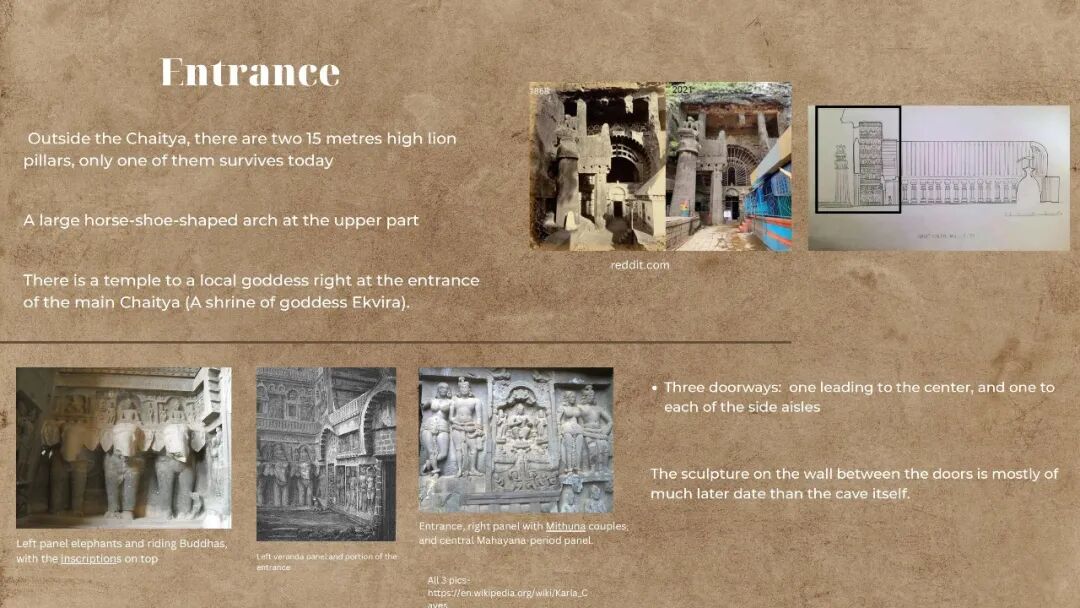

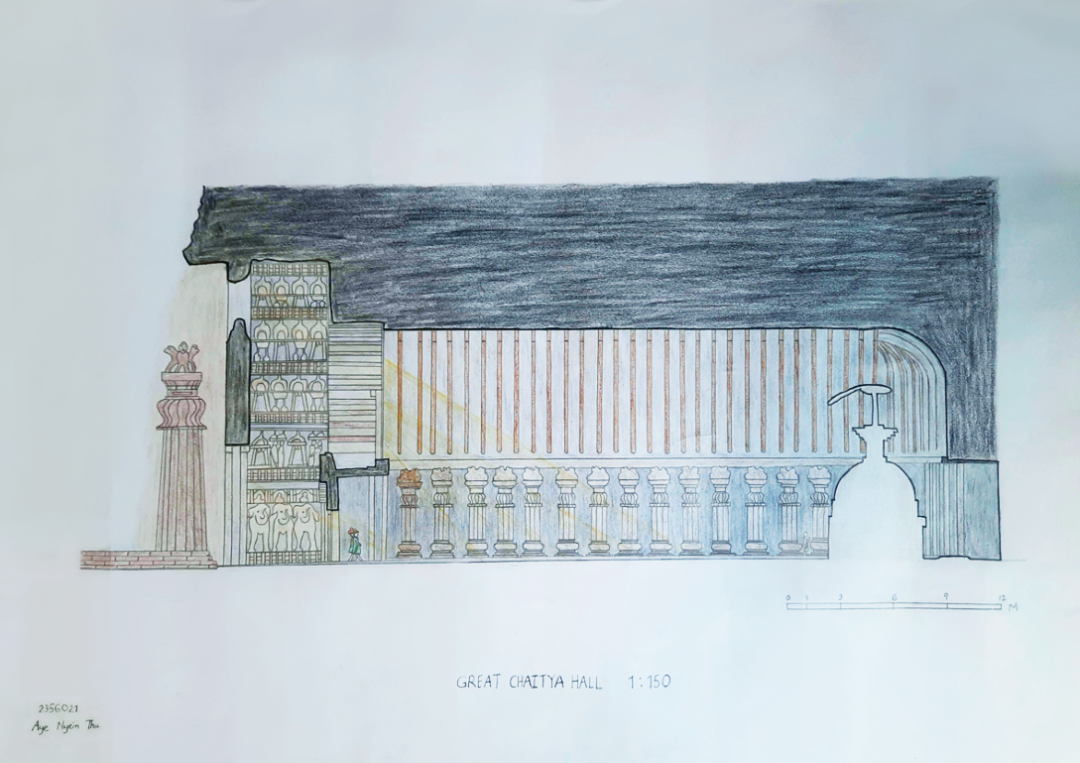

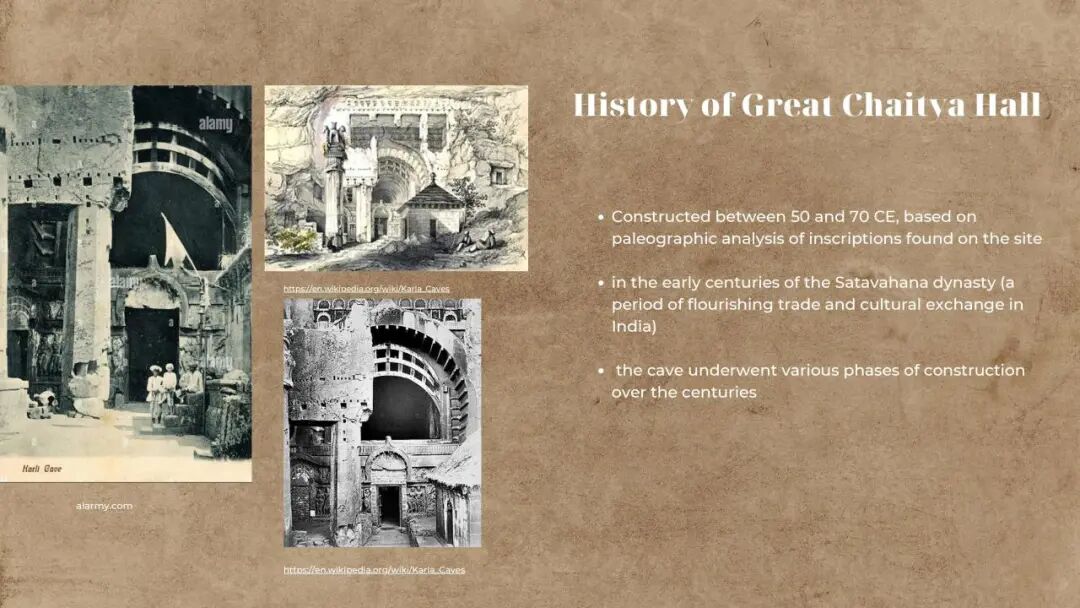

My drawing concept is to depict the main architectural feature of the Great Chaitya Hall at Karli, India, by using various colors to express the materiality and atmosphere inside the hall. Thick black lines were used to distinguish the section of the rock cut, the stupa, and the interior space, while other elements were depicted with thinner lines. I used brown and dark brown for the wooden ribs on the roof, as well as the lion pillars, horseshoe-shaped arch, interior pillars, and cravings on the wall. Dark blue was used between the pillars to express the cool atmosphere within the cave. As the stupa is the most sacred element within the hall, I colored it in a light grey hue to ensure that it is the most prominent feature in my drawing.

Regarding other elements, yellow was employed to represent the sunlight that penetrated the horseshoe-shaped arch, pale blue to represent the sky, and black to represent the rock cut and the cutting sections. I also incorporated human figures in ancient Indian attire with vibrant colors (green, yellow, red) and an orange-brown hue to represent the monks praying nearby, indicating the initial religious scene of this place.

Longitudinal Section of Hagia Sophia (Church of Holy Wisdom), Istanbul, Turkey, 532–537 CE

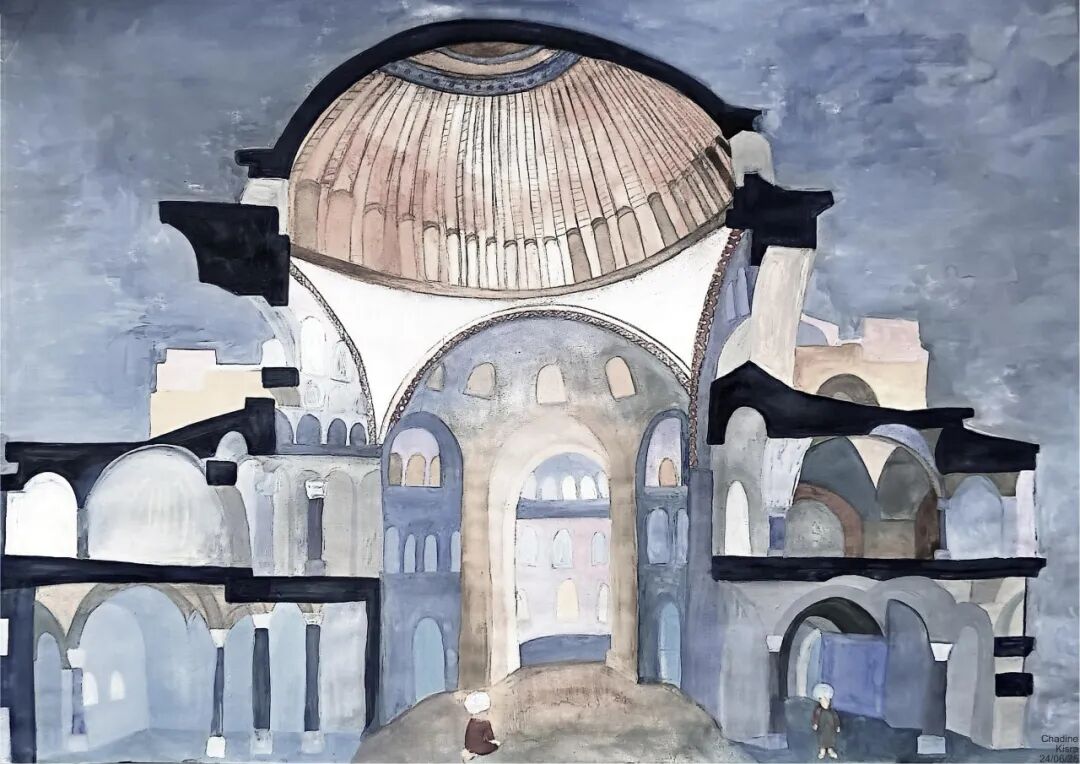

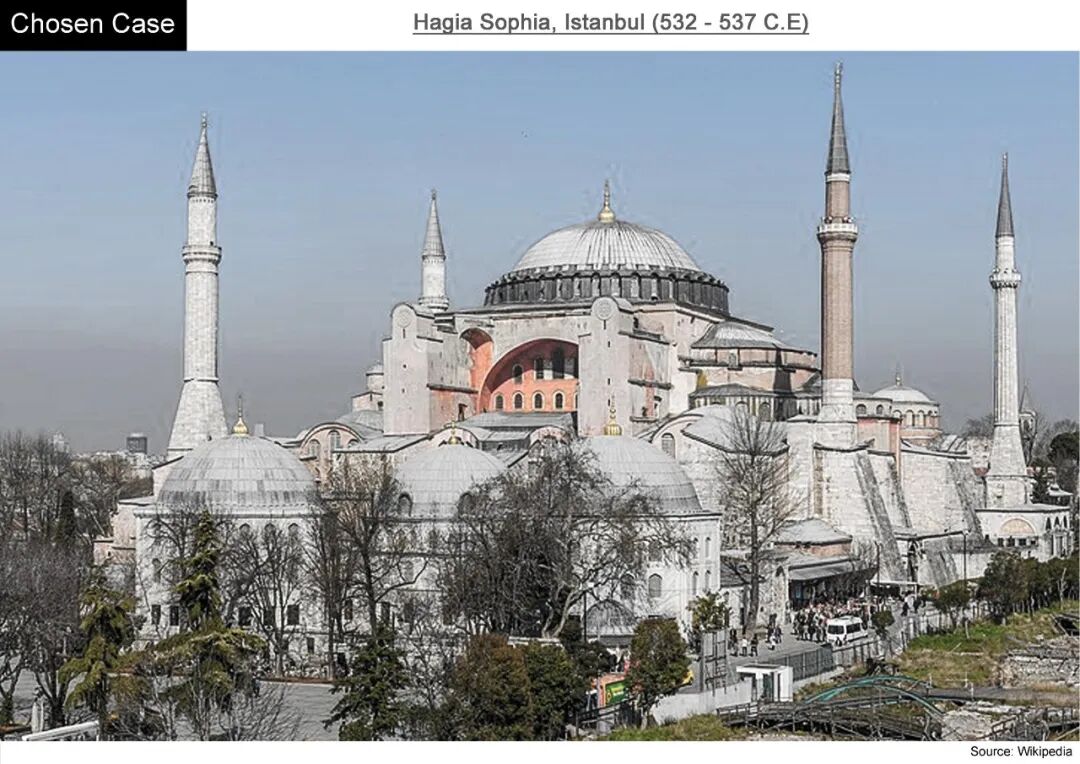

I implemented the traditional Chinese painting technique of meticulous brushwork gongbi to emphasize the subtle contrast between light and shadow within Hagia Sophia. This technique enhances the depth of each compound of the building. By darkening the point of each pendentive and arch, I achieved my ultimate objective of deepening the perspective to the maximum extent possible. Upon my visit to Istanbul, I observed that the sky was predominantly overcast for the day. Consequently, I have elected to depict the sky in a realistic manner in the backdrop. I tended to represent the scene when the building was used as a mosque. Thus, two individuals have been introduced: a father praying towards the Mihrab alcove and his son, eager to learn how to perform Islamic rituals.

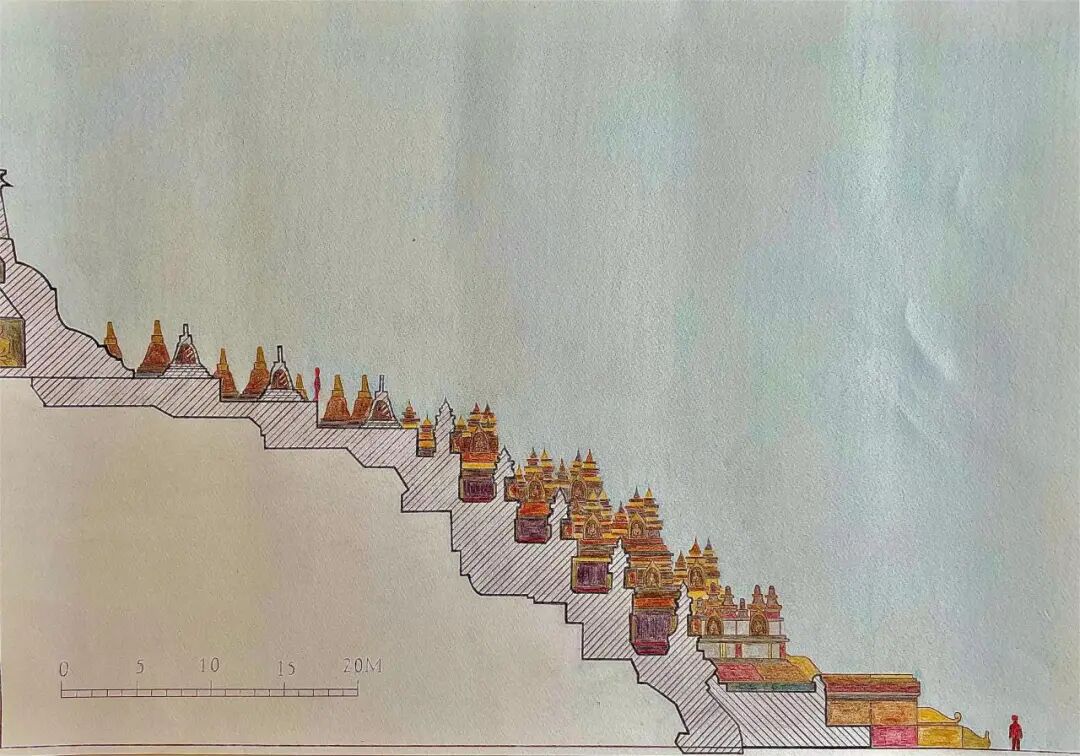

Cross Section of Borobudur, Jogyakarta, Java, Indonesia, 842 CE

Lighting plays a huge part in the color of Borobudur. When illuminated by direct sunlight, the structure appears to have just brown and yellowish shades; however, when there is a lack of sunshine, the structure ranges from dark to light grey.

I used color pencils because this drawing is highly detailed and miniature, so they seemed appropriate for the occasion. Also, using different pencil hues and values helped me stay organized in my drawings. The placement of stupas, balustrades, and niches is critical for this portion. I used the line function to split the front and back, with the frontal part highlighted with a ticker and a darker line than the back.

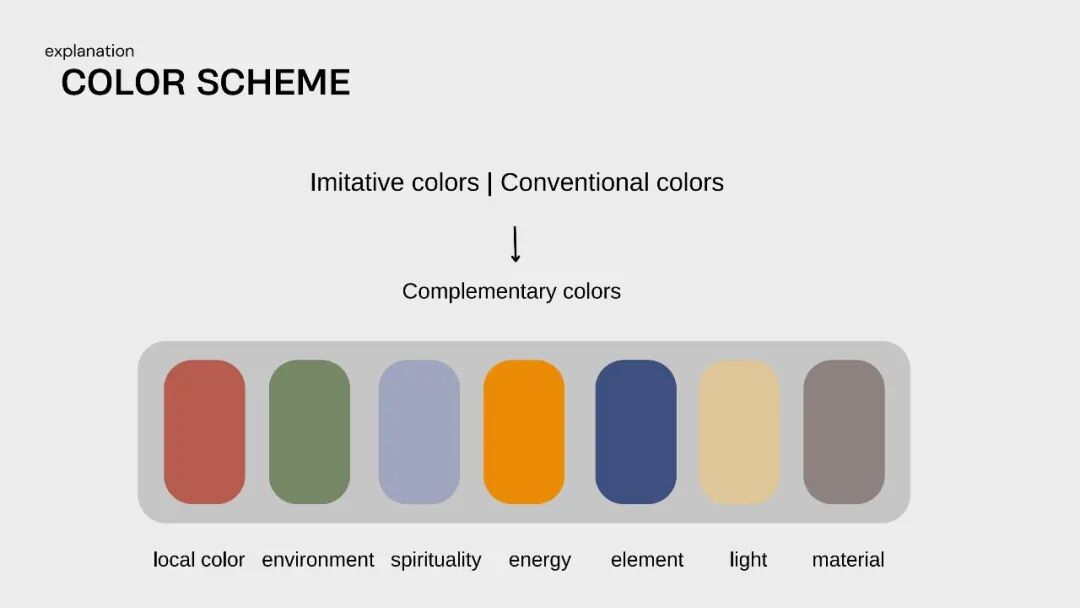

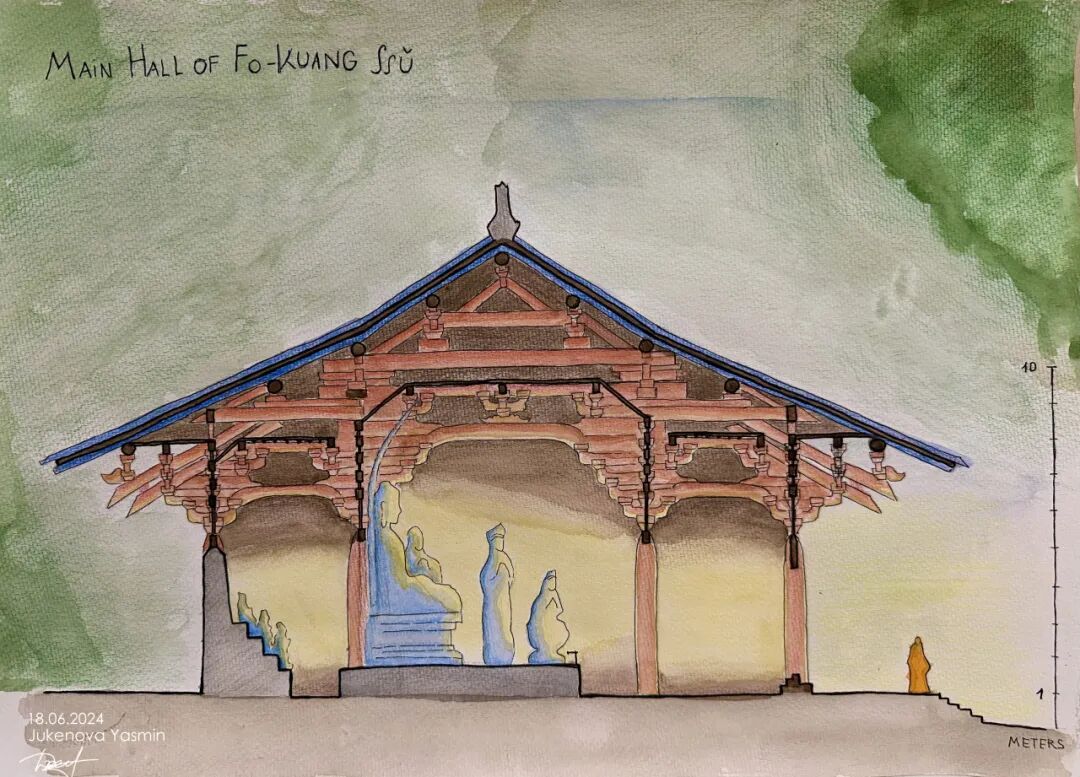

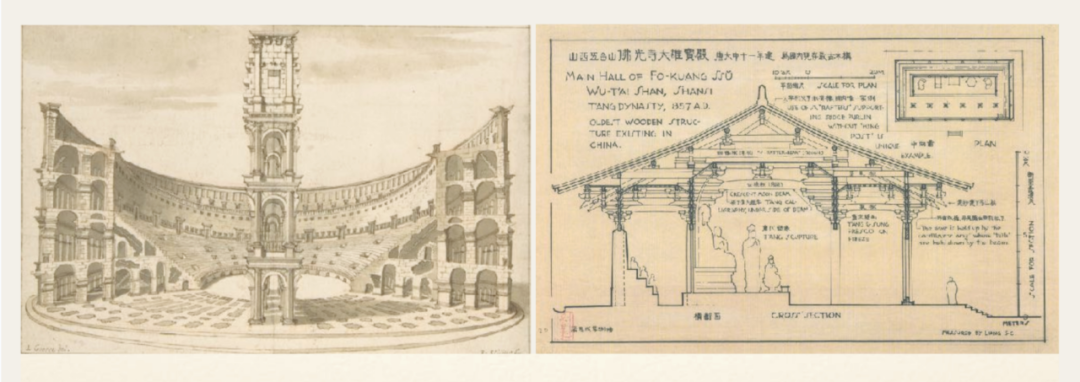

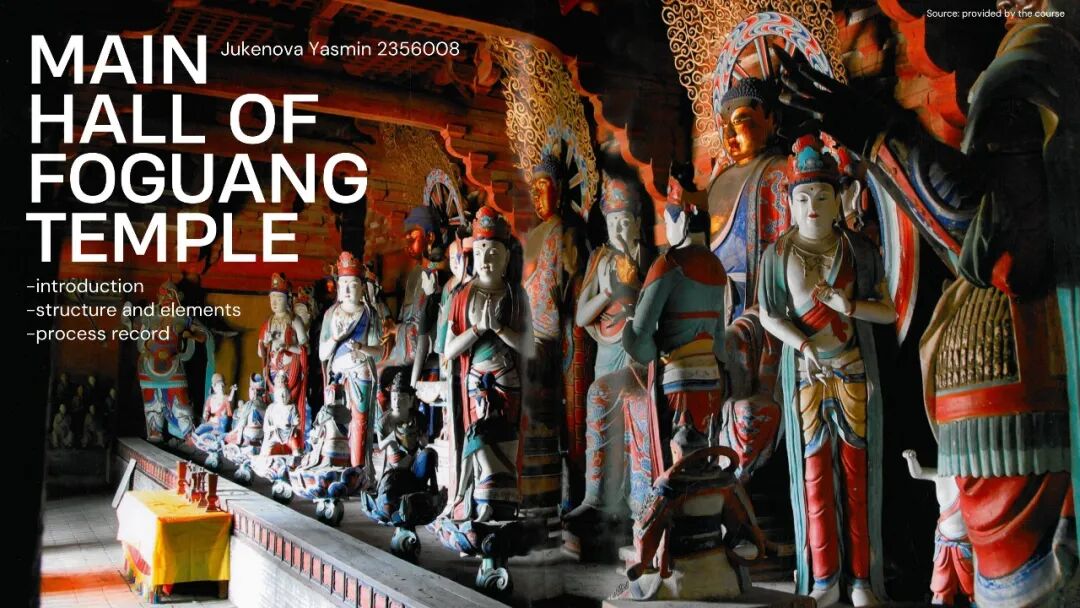

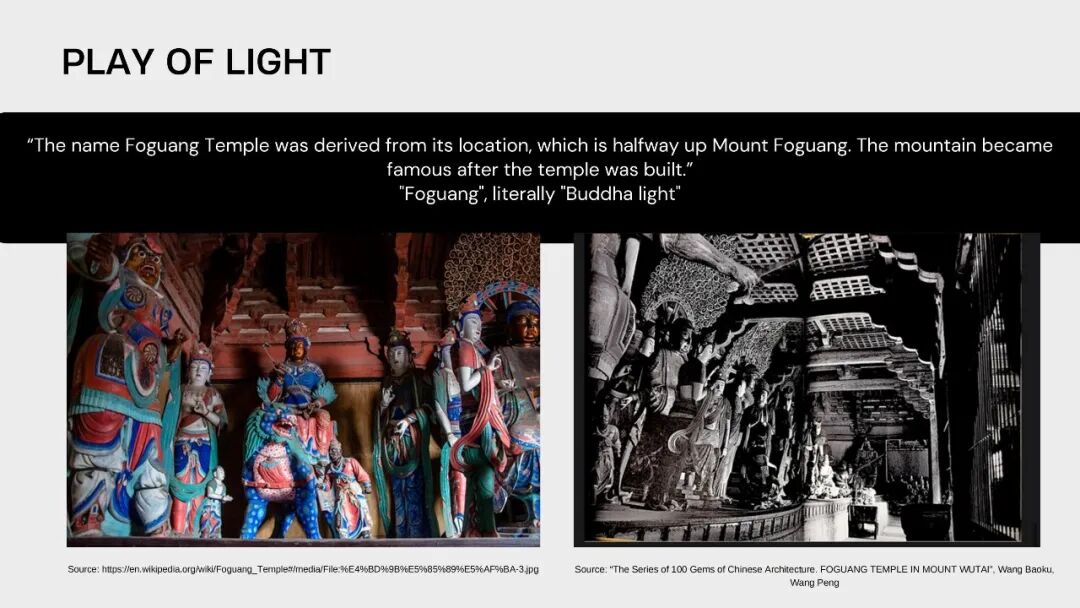

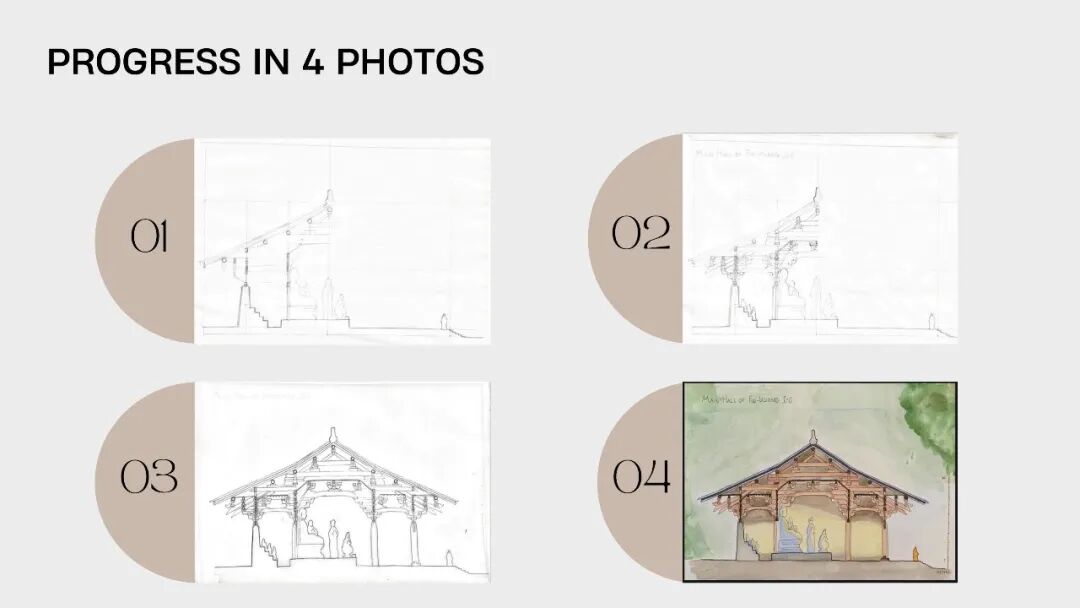

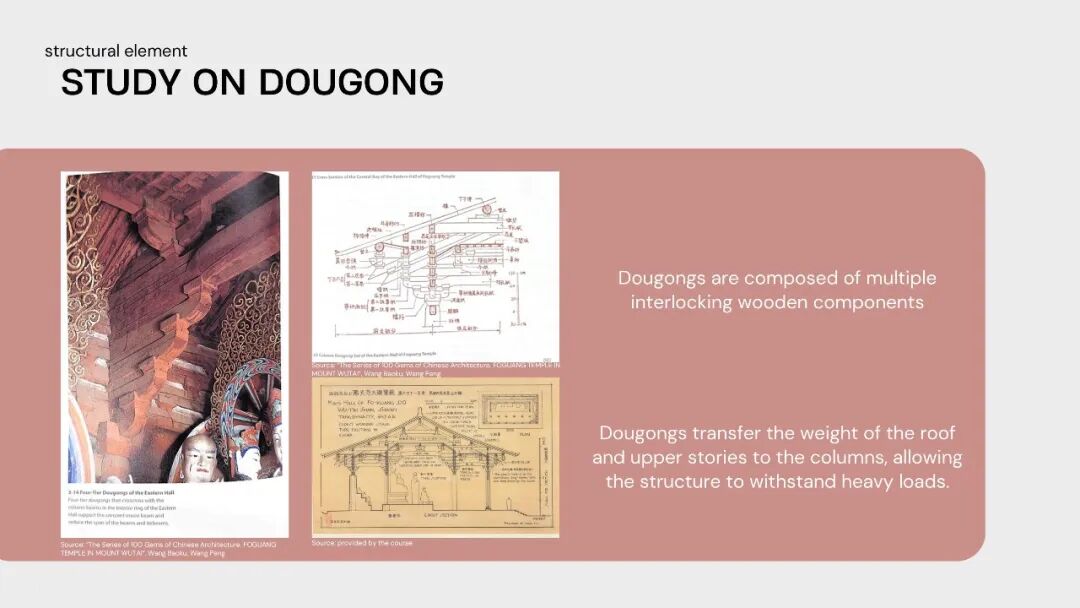

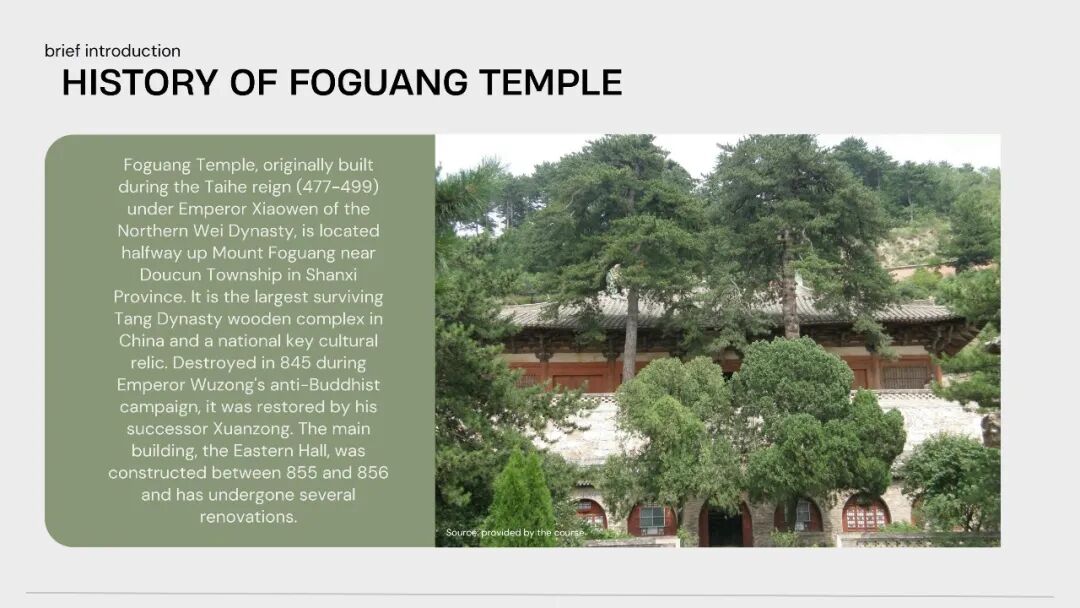

Light filters through the latticed windows, casting gentle illumination upon the graceful lines of the interior space of the main hall of Foguang Temple. “Foguang” literally means “Buddha light.” Buddha’s glow is a source of inspiration and guidance in a quiet, dark space, and this leads to my idea for the drawing. The interaction of light enhances the sense of sacredness and intimacy. Consequently, a large part of my color scheme is composed of pale yellow, which stands for light. Overall, the use of imitative and conventional colors, including complementary ones, achieved a balanced scheme. The reddish-orange color imitates the material of the timber framework. Light blue goes for the statues as it is associated with calmness, spirituality, and inspiration. Green represents the adjacent natural environment of the building—a densely forested mountain that positively influences the mental state. My objective was not only to showcase the features of the main hall but also to deliver the religious and philosophical meaning of the temple.

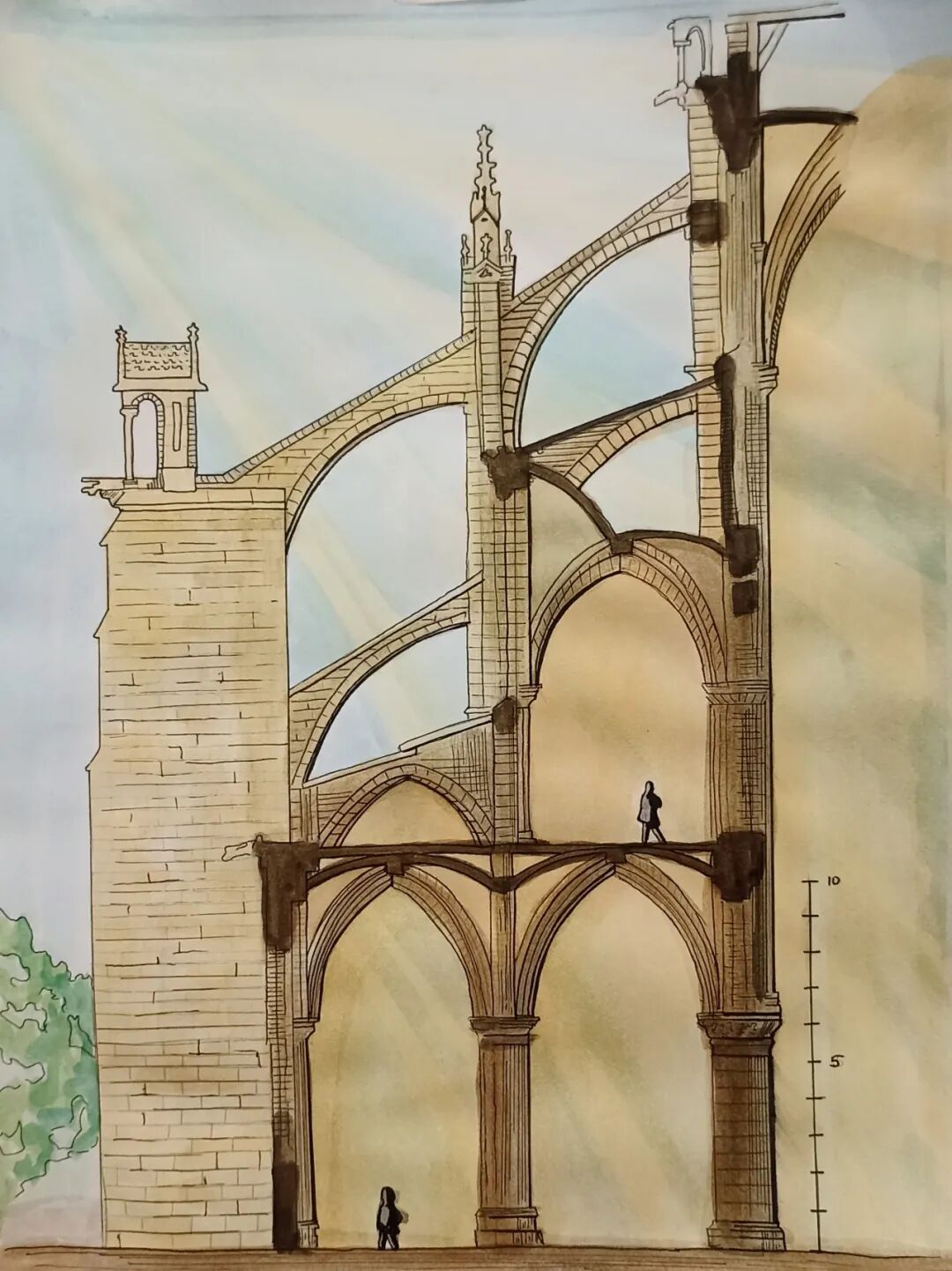

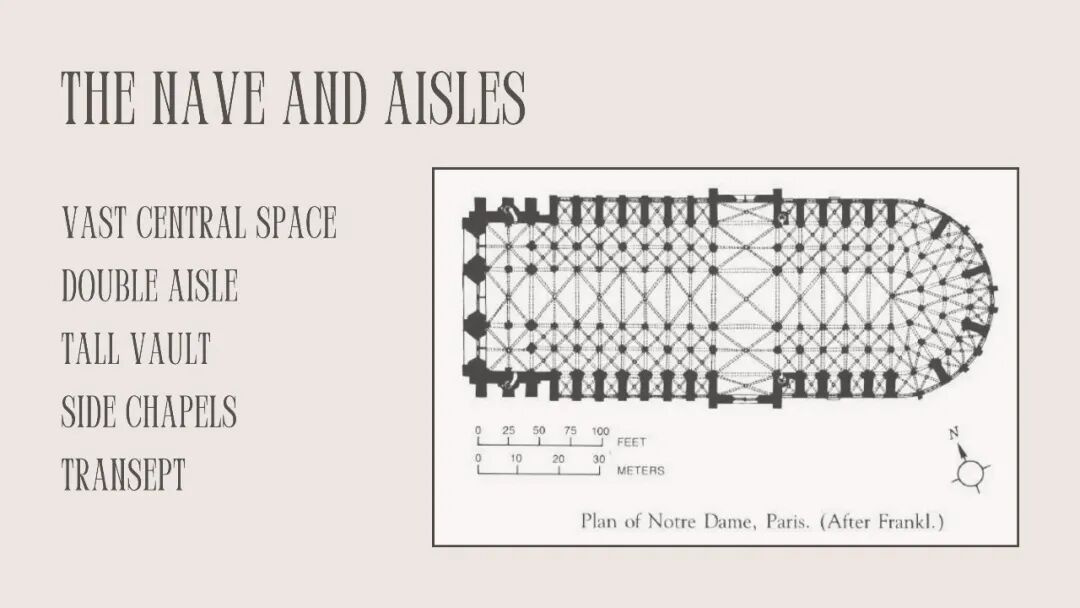

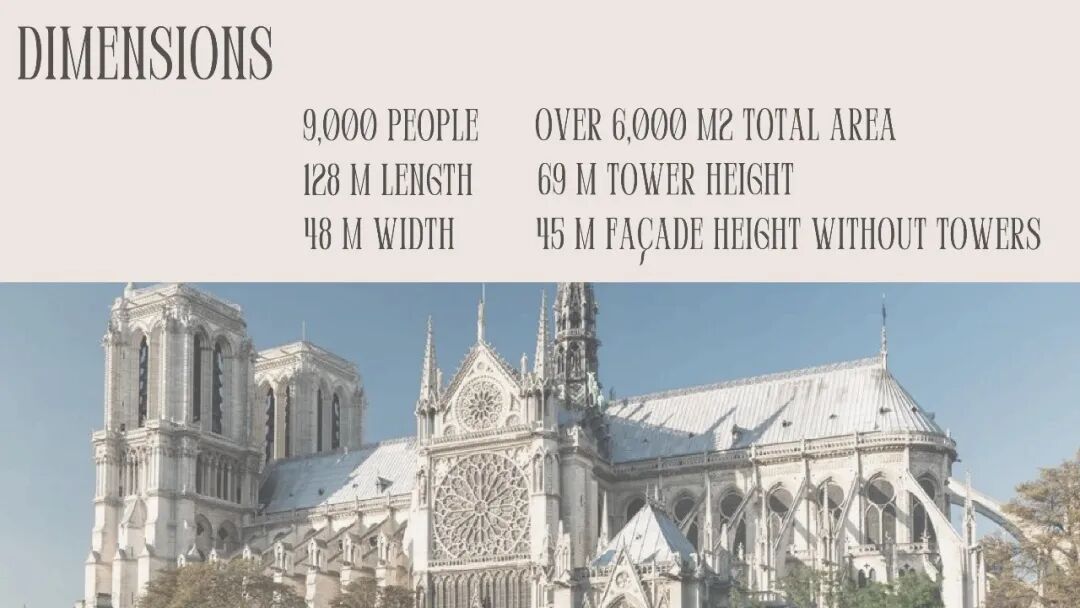

Sections of Notre-Dame de Paris (partial), Paris, France, 1163–1345

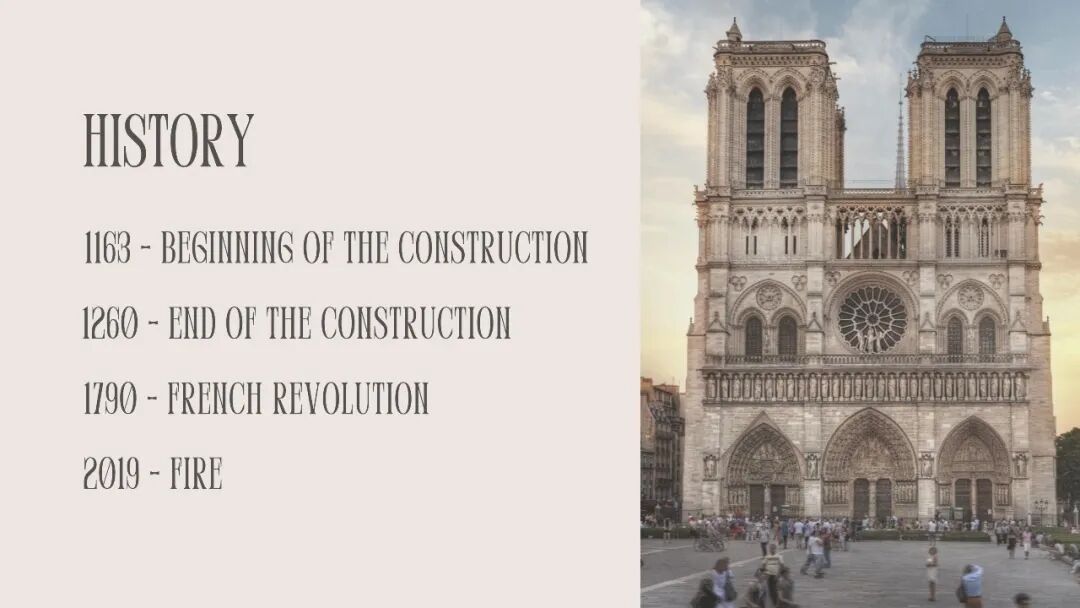

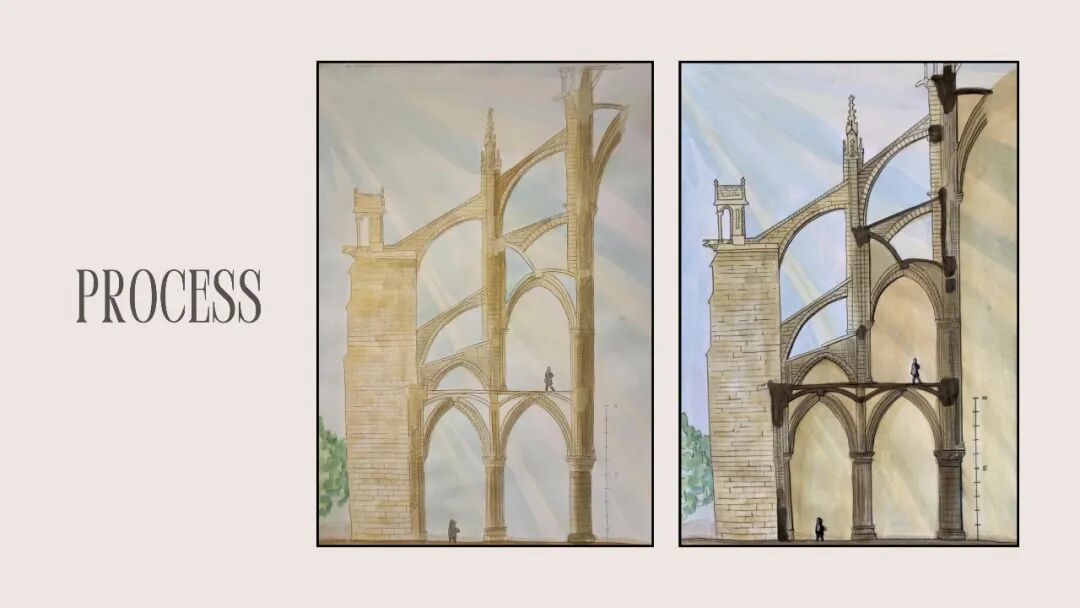

Notre-Dame de Paris, which was constructed in the 12th century and boasts a rich and captivating history, stands as one of the most remarkable Gothic cathedrals in the world. It continues to be a globally cherished and iconic landmark despite all the disasters and social upheavals it has suffered, including the French Revolution, World War II, and a devastating fire in 2019. I aimed to capture the cathedral's beauty through precise and accurate details that contribute to its distinctiveness and beauty. My goal was to create a clear representation that emphasized the cathedral itself without any unnecessary distractions.

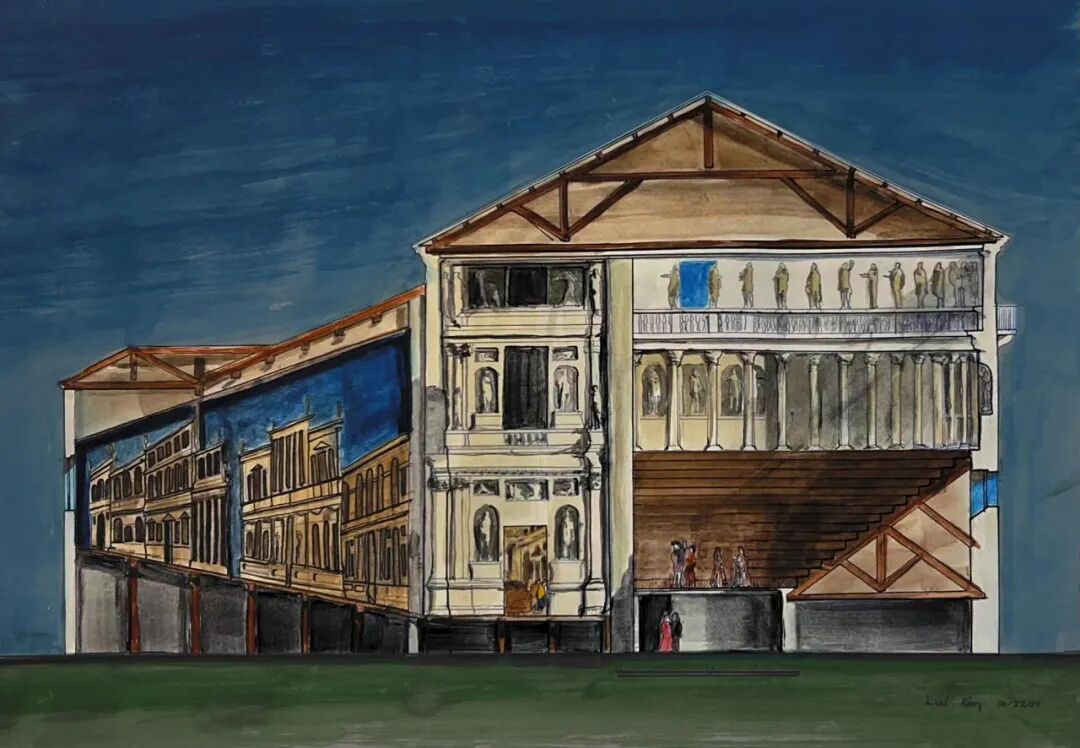

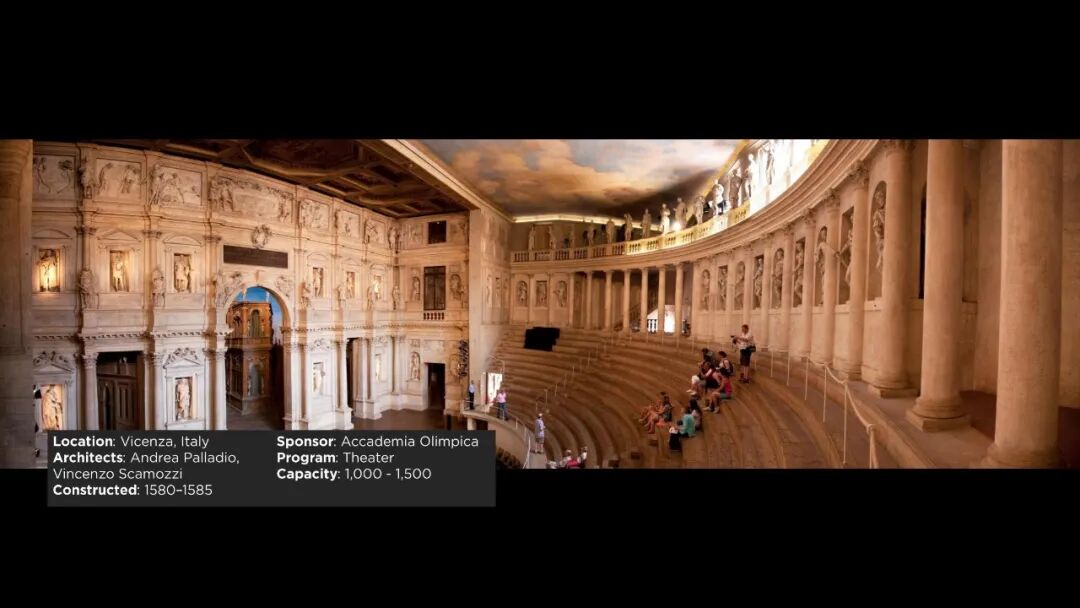

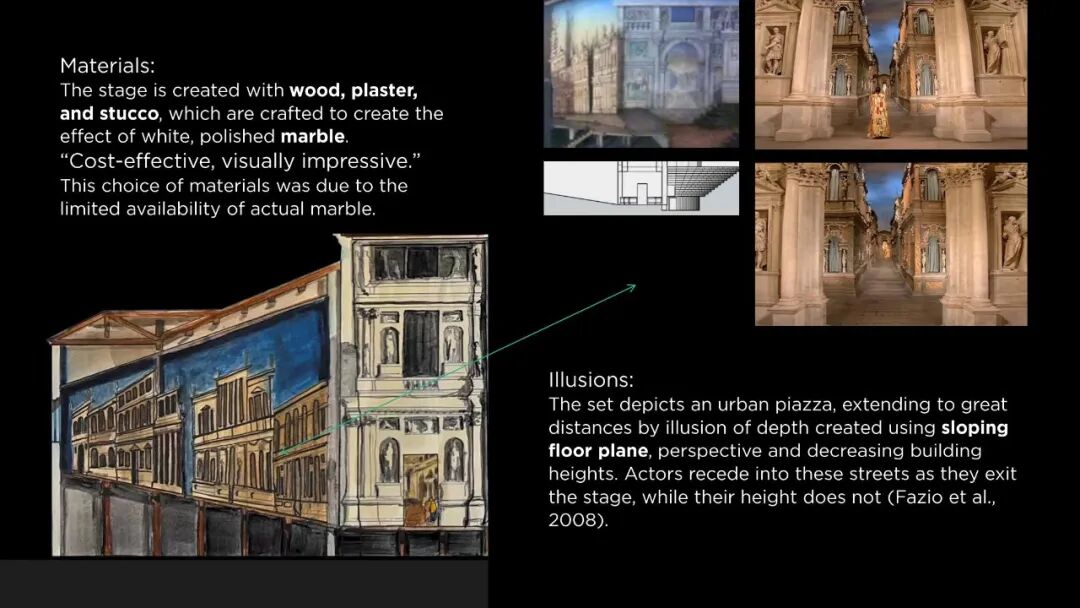

Cross section of Teatro Olimpico, Vicenza, Italy, 1580–1585

The Teatro Olimpico (1580–1585) in Vicenza, the world's oldest indoor theatre and the final work of Renaissance master Andrea Palladio (1508–1580), was completed by Vincenzo Scamozzi (1552–1616). It remains the iconic representation of classical Vitruvius building codes and perspective ingenuity.

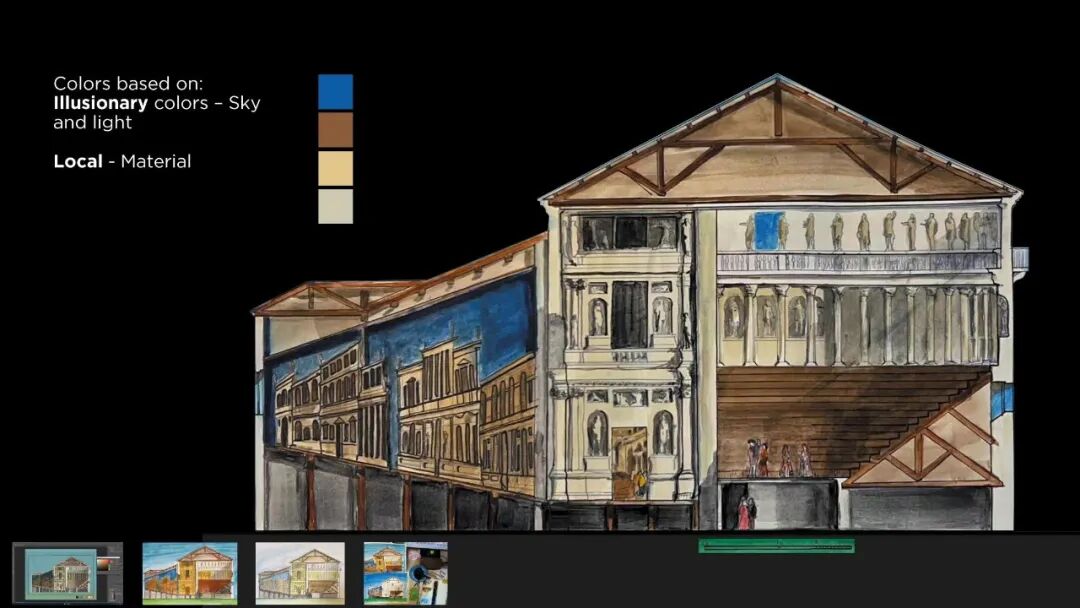

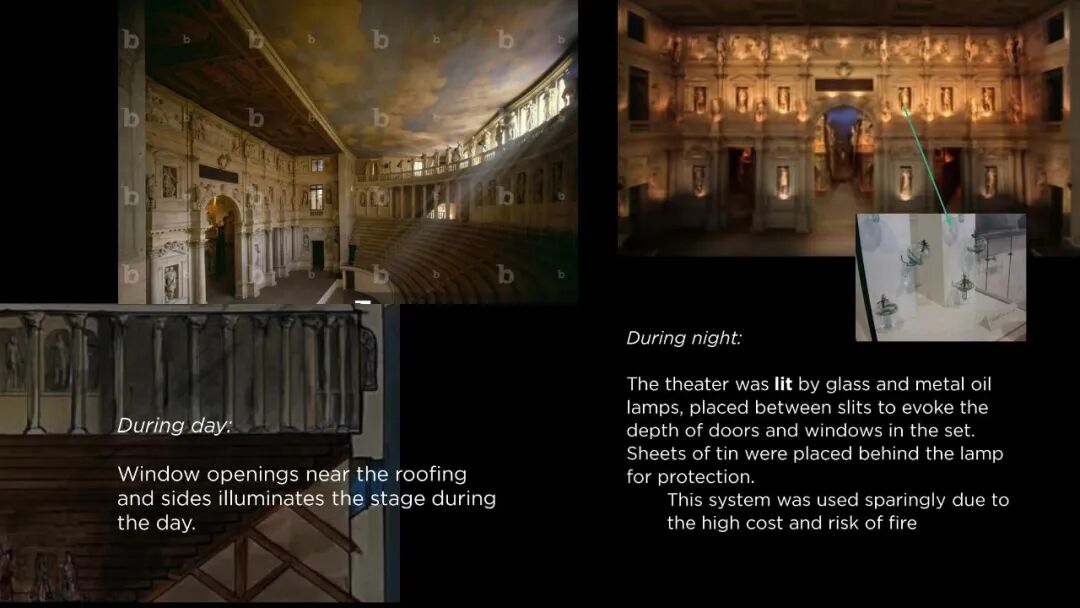

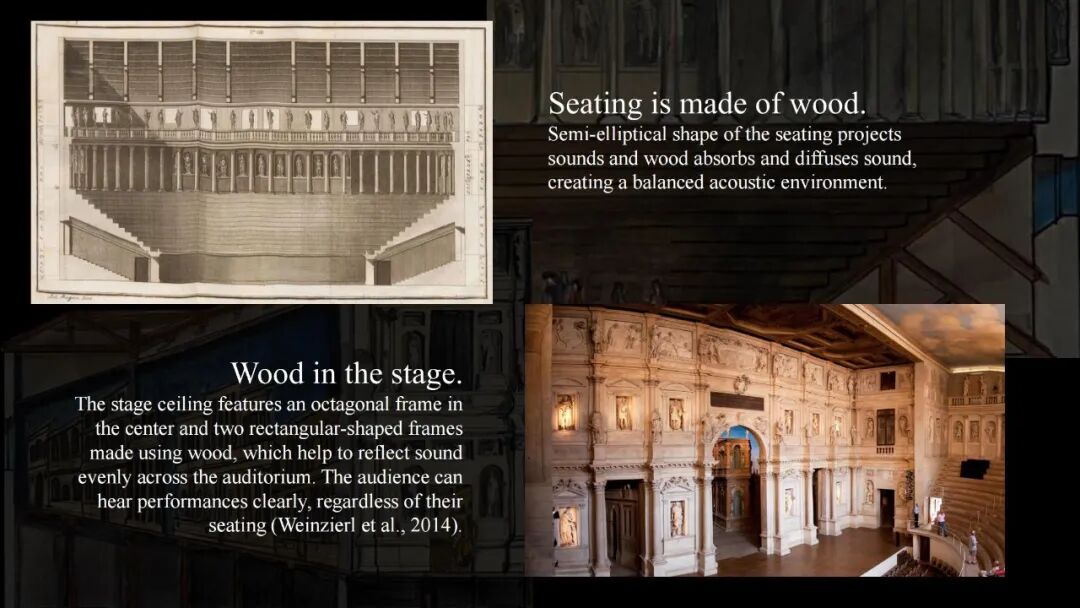

My work is a watercolor and liner painting that transcribes Ottavio Bertotti Scamozzi’s sectional drawing of Teatro Olimpico from 1776. I used colors, lines, and users to represent the space, material, and illusionary design of the theater. Brown highlights the wood's importance to structure and acoustics, and lines and shadows within the oval seatings showcase the depth and subsequent sound projection. A subtle yellow hue on the statues and stage, appearing as marble, represents their actual formation of swamp reeds, tow, earthenware and mortar. Unusual for theaters at the time, only the aristocracy could use Teatro Olimpico. After staging Oedipus Rex, the Accademia, who sponsored the project, viewed the temporary stage as a precious piece of architecture. Thus, it has been preserved today since its inauguration, as is the awe of the spectators.

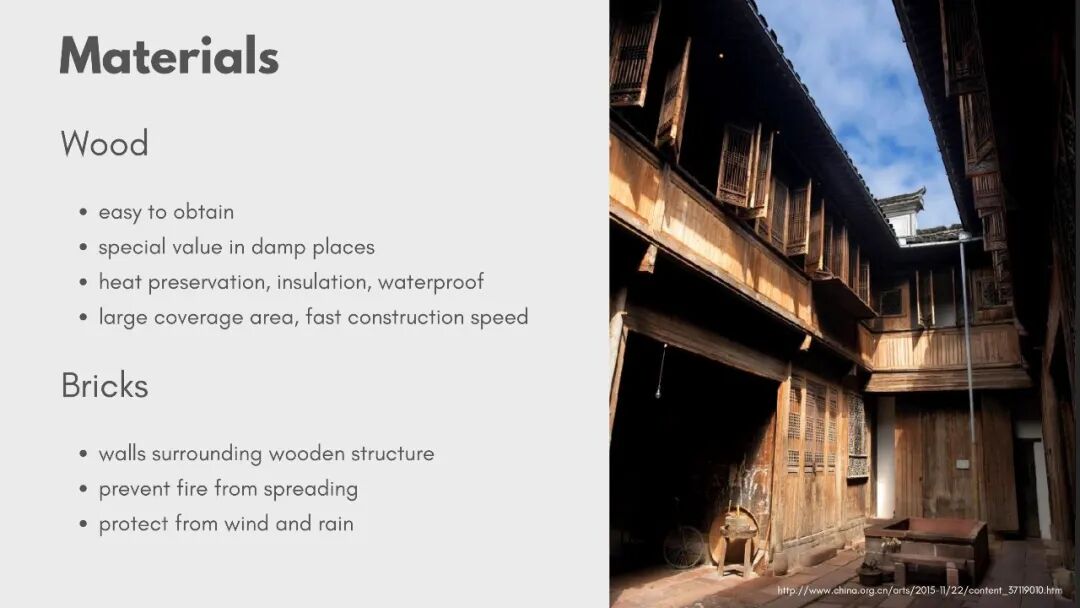

Yin Yu Tang House, Peabody Essex Museum, Boston, USA, initially built in southeastern Huizhou region, China, late 18th century

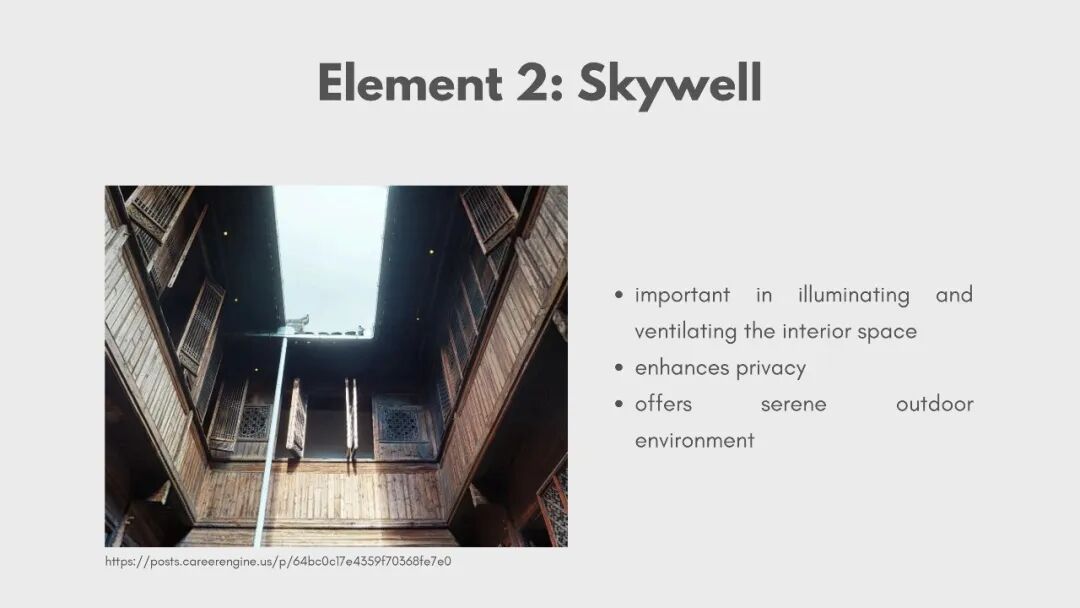

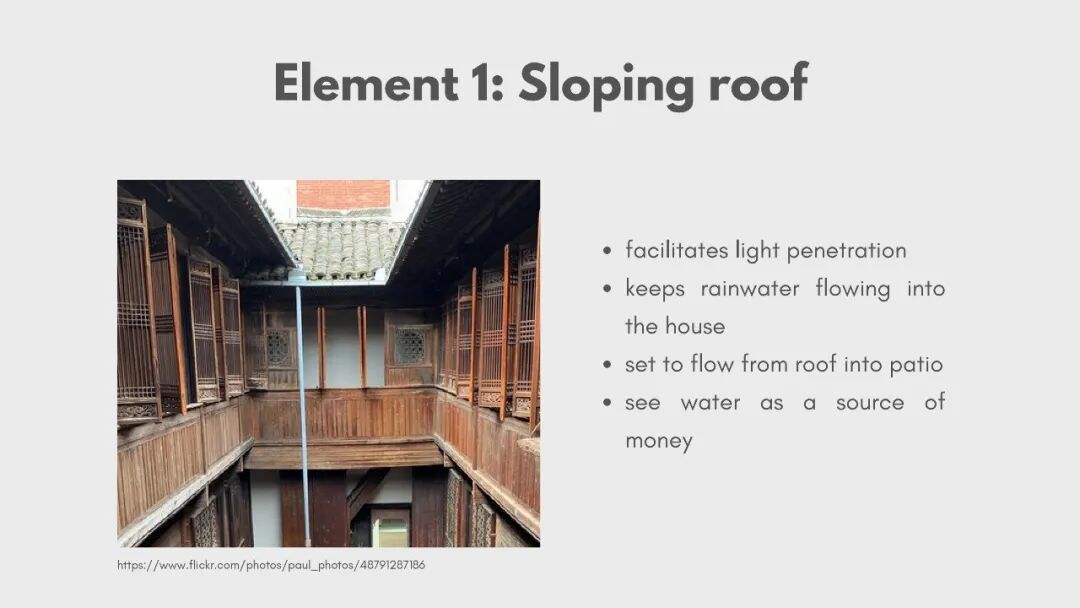

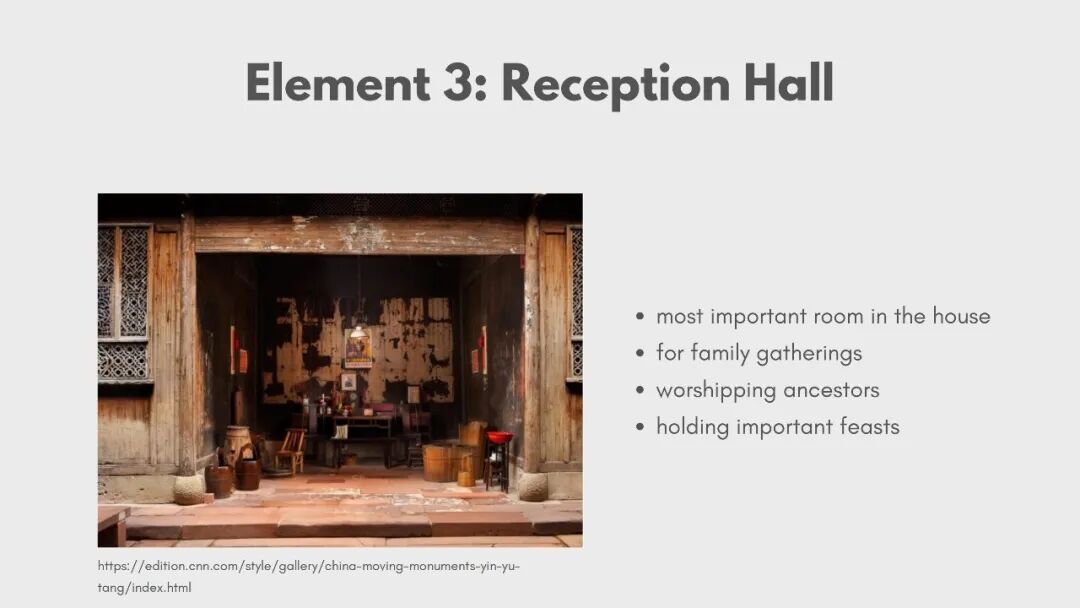

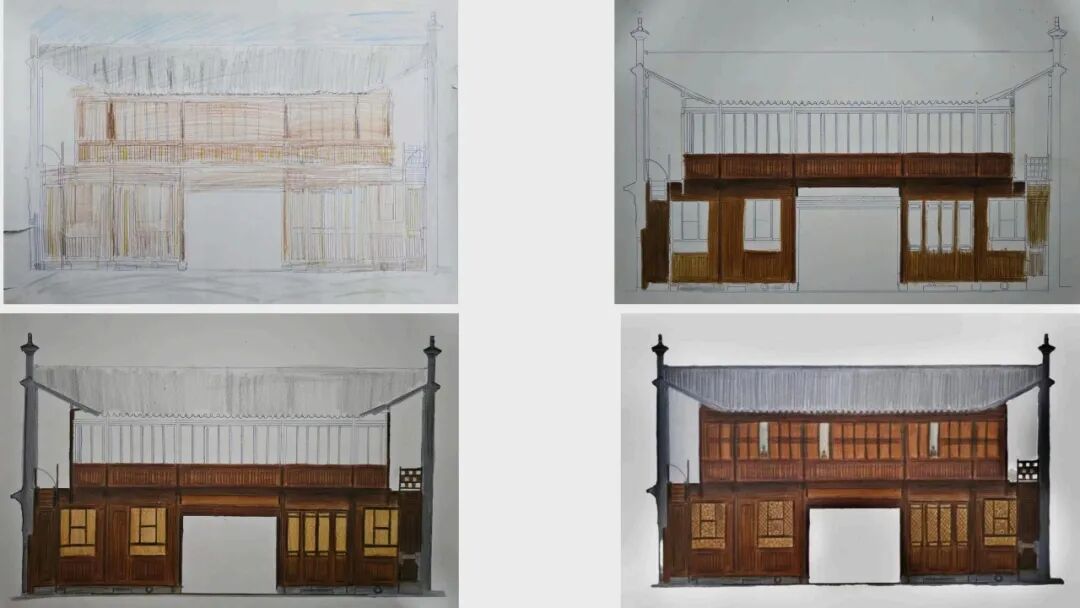

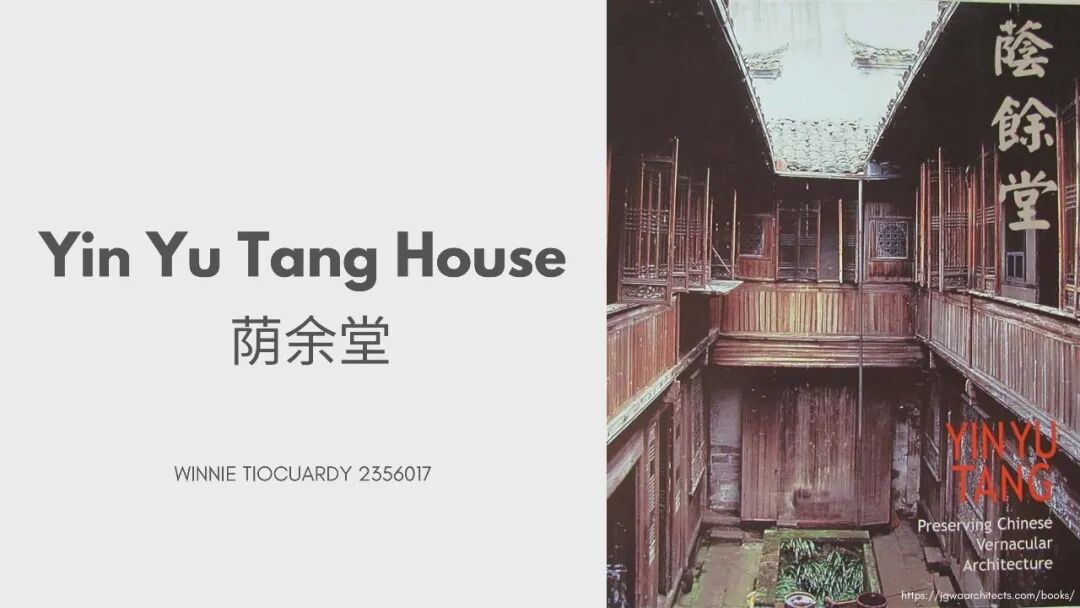

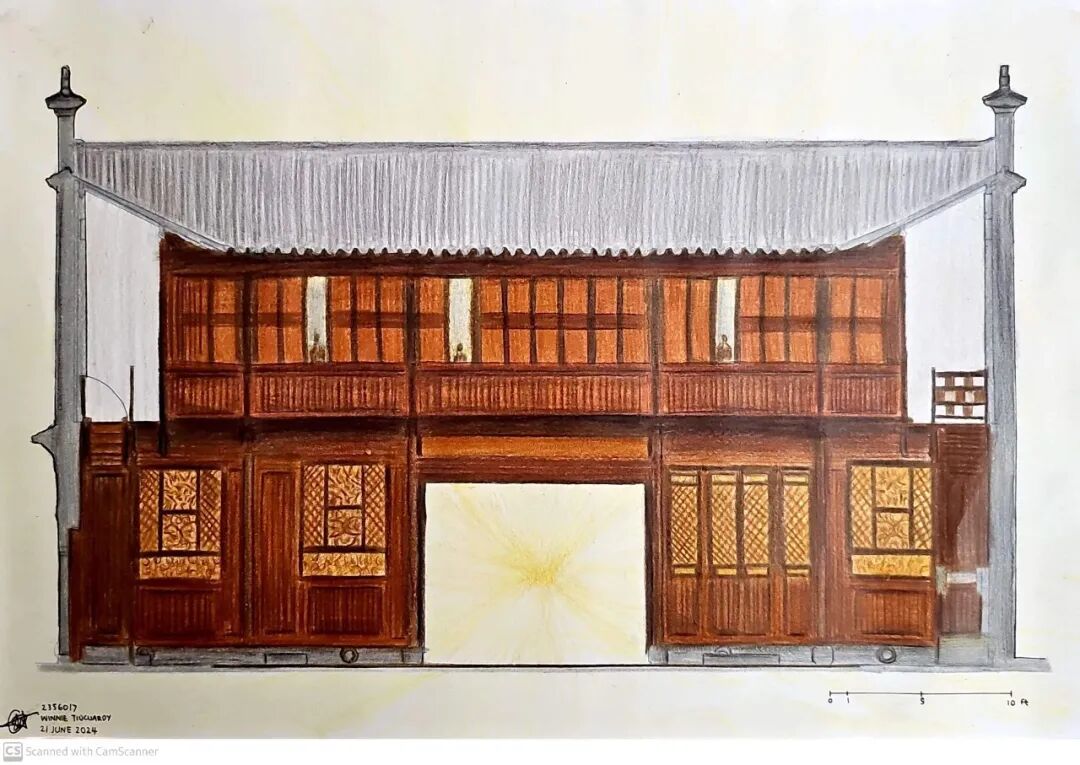

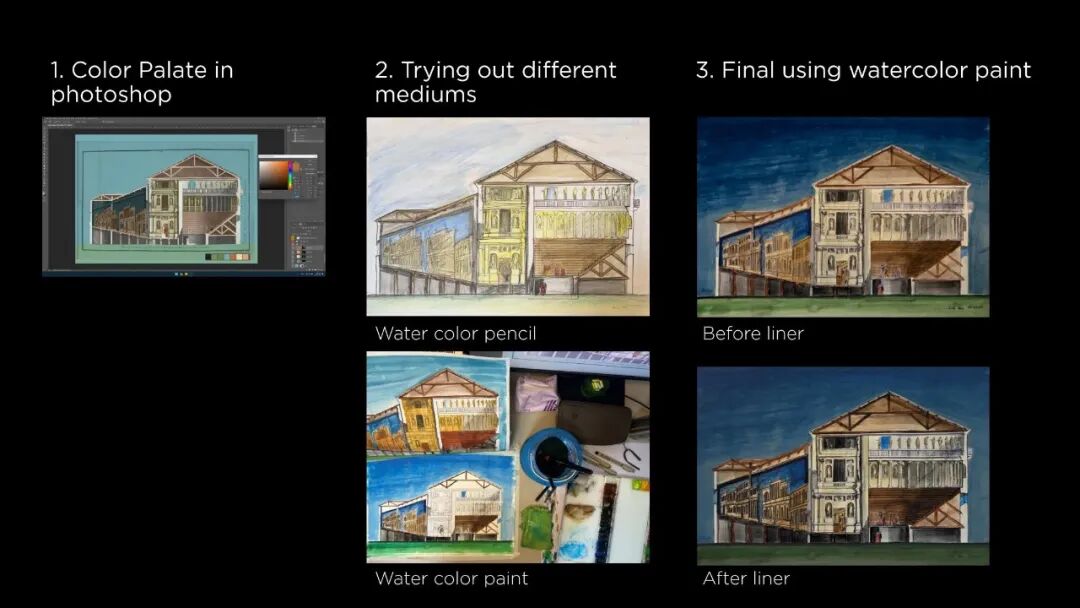

In this drawing, the essence of Yin Yu Tang house is captured by employing the concept of imitative colors. The wooden elements were depicted in brown, while the tiled roof was depicted in grey. A focal point is used in the center of the space to emphasize the main hall, a critical feature of the ground floor that was the site of ancestral worship and other significant rituals. Yellow was used not only to denote reverence and significance but also to provide a sense of warmth and illumination to the area, thereby indicating its function as the core of the family.

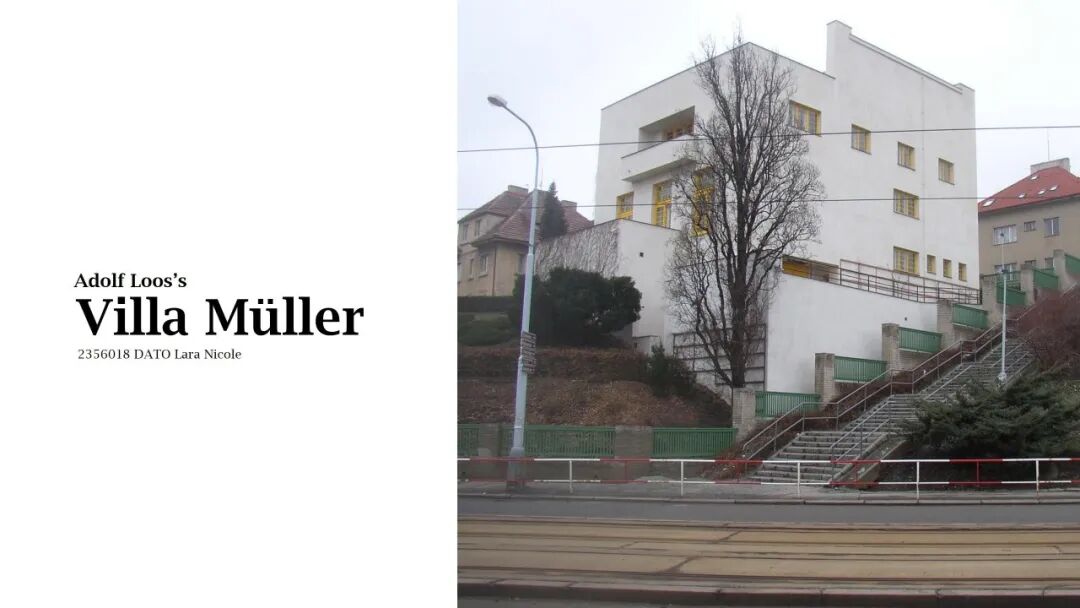

Cross Section of Villa Müller, Prague, Czech, Adolf Loos, 1930

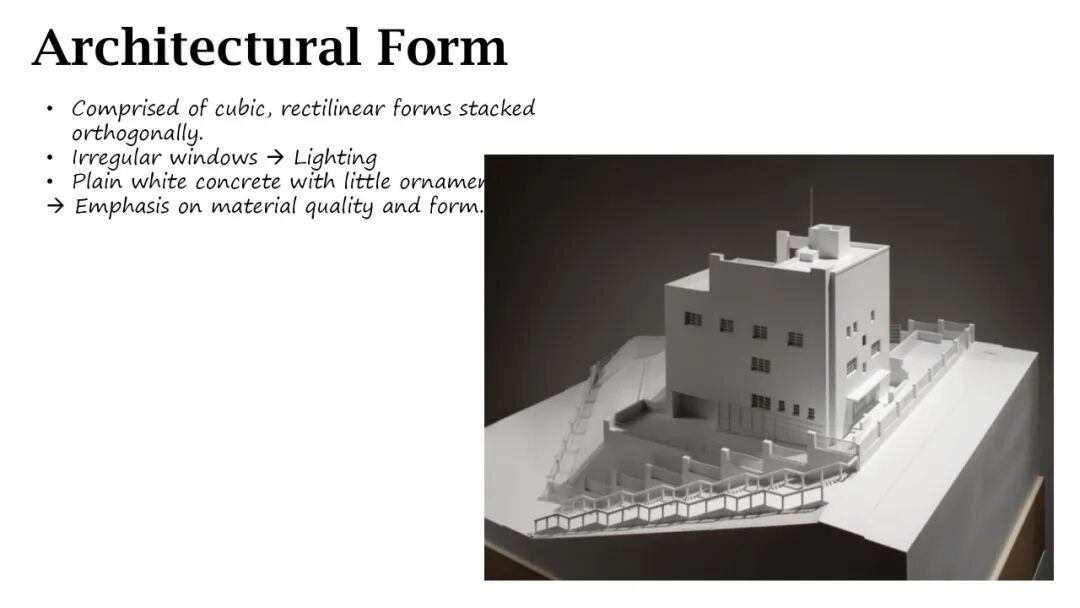

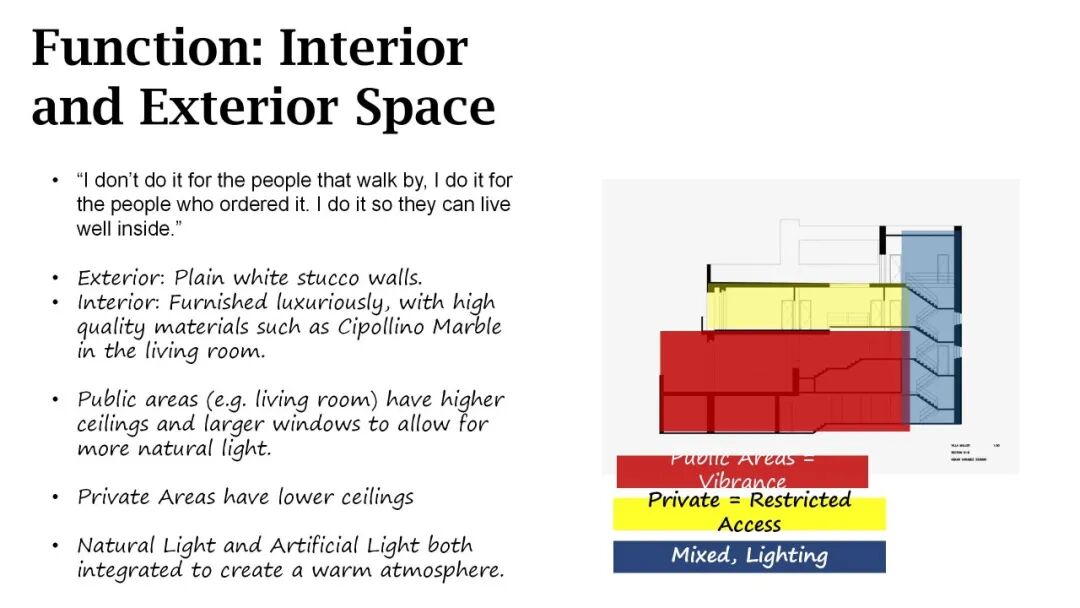

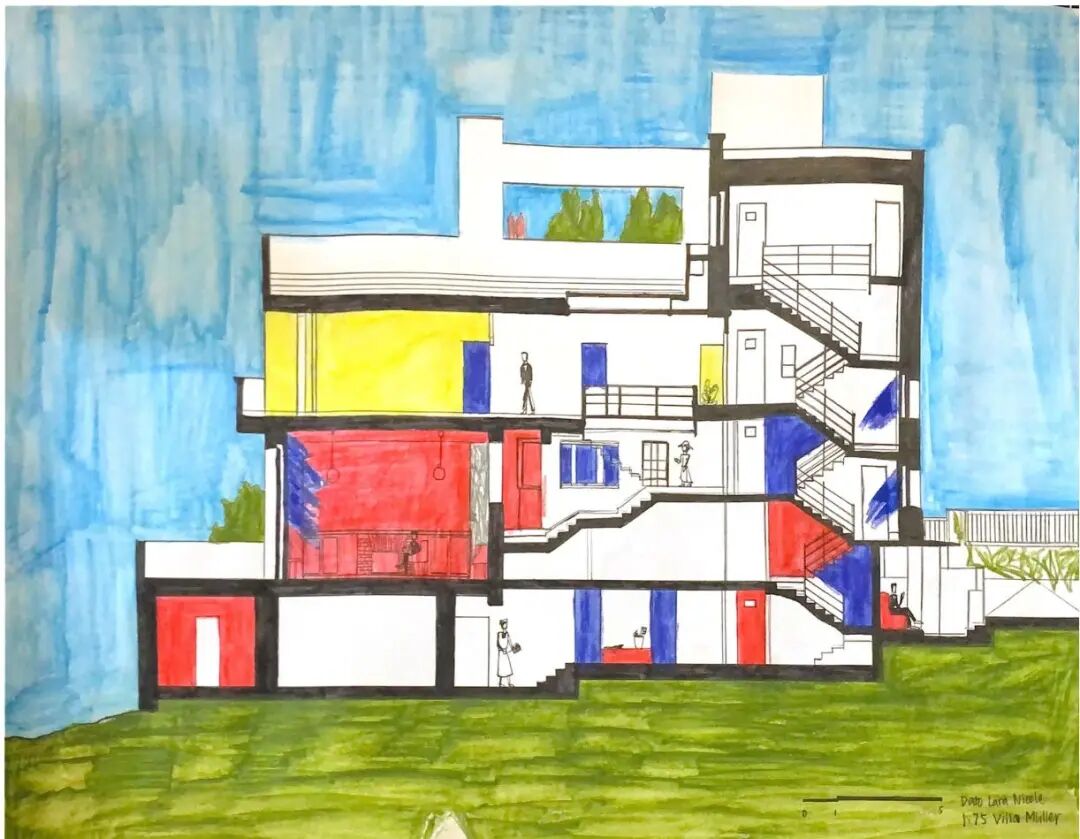

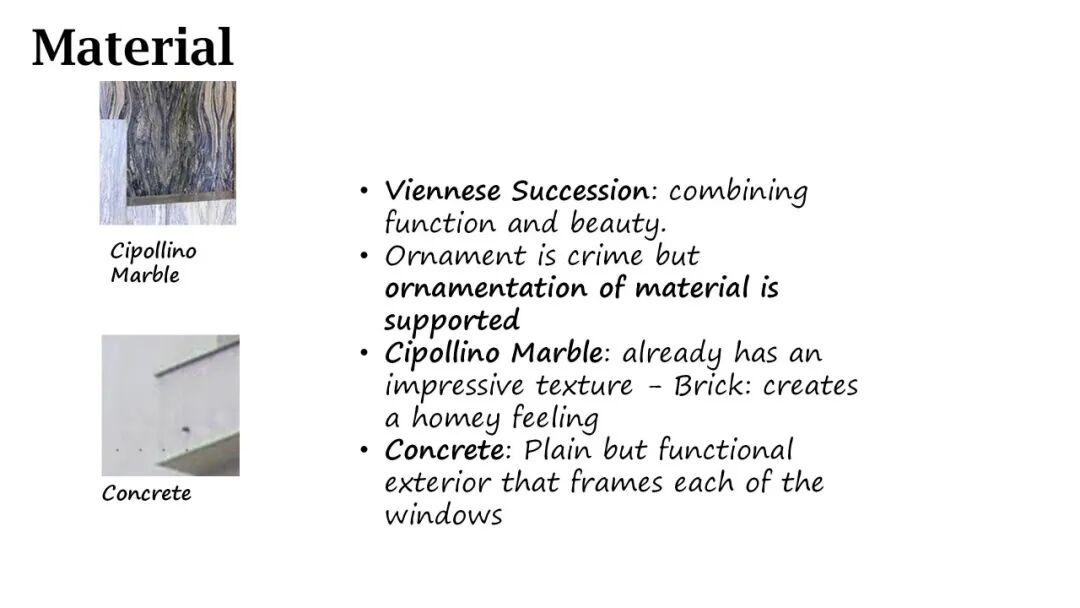

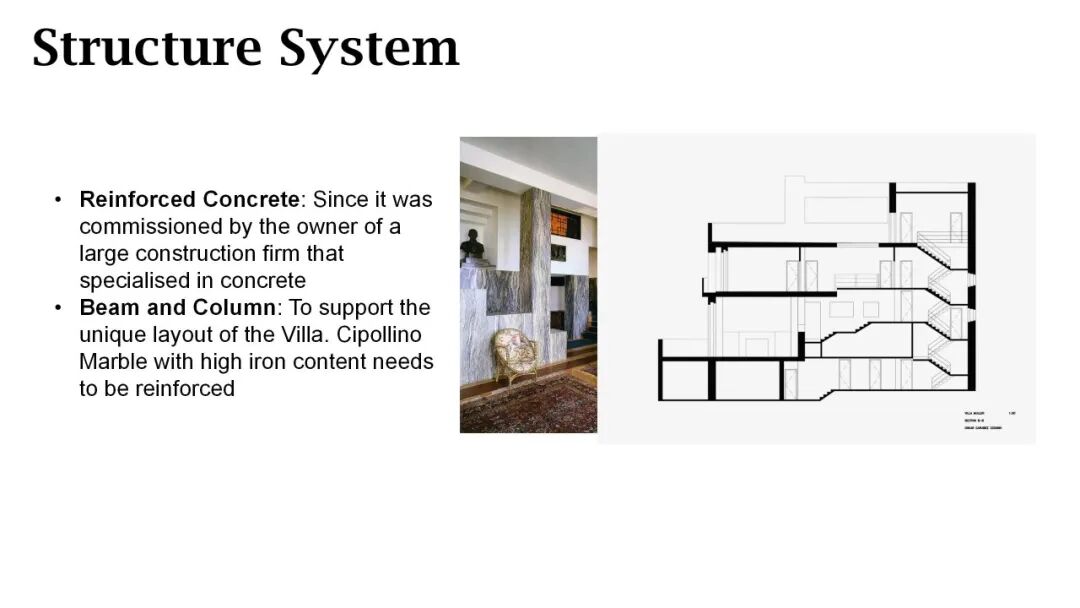

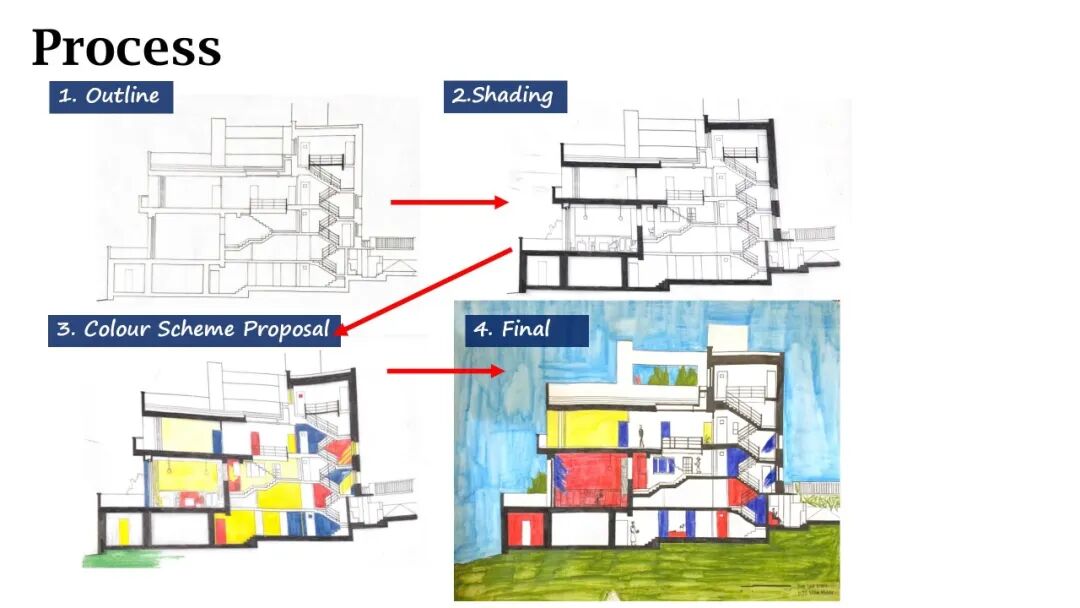

Villa Müller, which was commissioned in 1929 as a residence for František Müller, is a primary example of Adolf Loos’s Raumplan concept. The architectural form of this project combines numerous rectilinear forms piled orthogonally. The façade is plain, white concrete, and the windows are irregular in shape, as they are designed to accommodate the interior function. As Loos always preferred to use materials in their purest forms, I selected red, yellow, and blue (the purest colors) to distinguish between public and private areas within the house.
